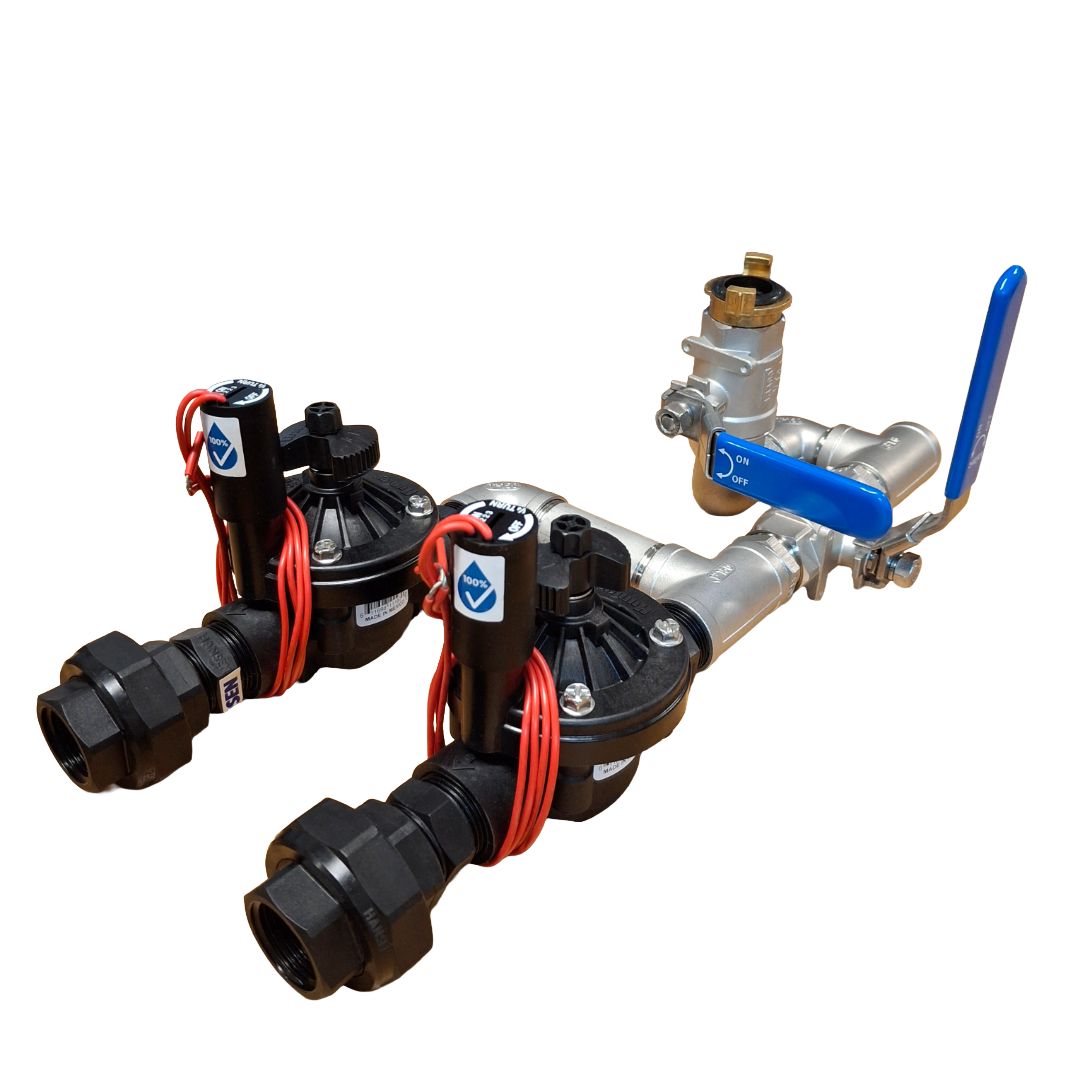

Pre-assembled twin-zone irrigation valve assembly combining a stainless-steel manifold, a 1 in GEKA hand-watering point and two Hunter ICV 1 in solenoid valves. It provides two controller-operated irrigation zones and a convenient hose or service point in one compact arrangement for golf, sports-turf and commercial systems.

Valve and manifold features

• Two independently controlled solenoid-valve outlets
• Union connections help simplify valve removal and servicing
• 1 in hand point with GEKA-compatible connection
• Commercial-grade glass-filled nylon valves with flow control, internal and external manual bleed, and reinforced EPDM diaphragms
• 24 VAC valves for compatible mains-powered irrigation controllers

Selection guidance

Hunter specifies the 1 in ICV for 0.06–9 m³/h and a recommended pressure range of 1.5–15 bar. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
