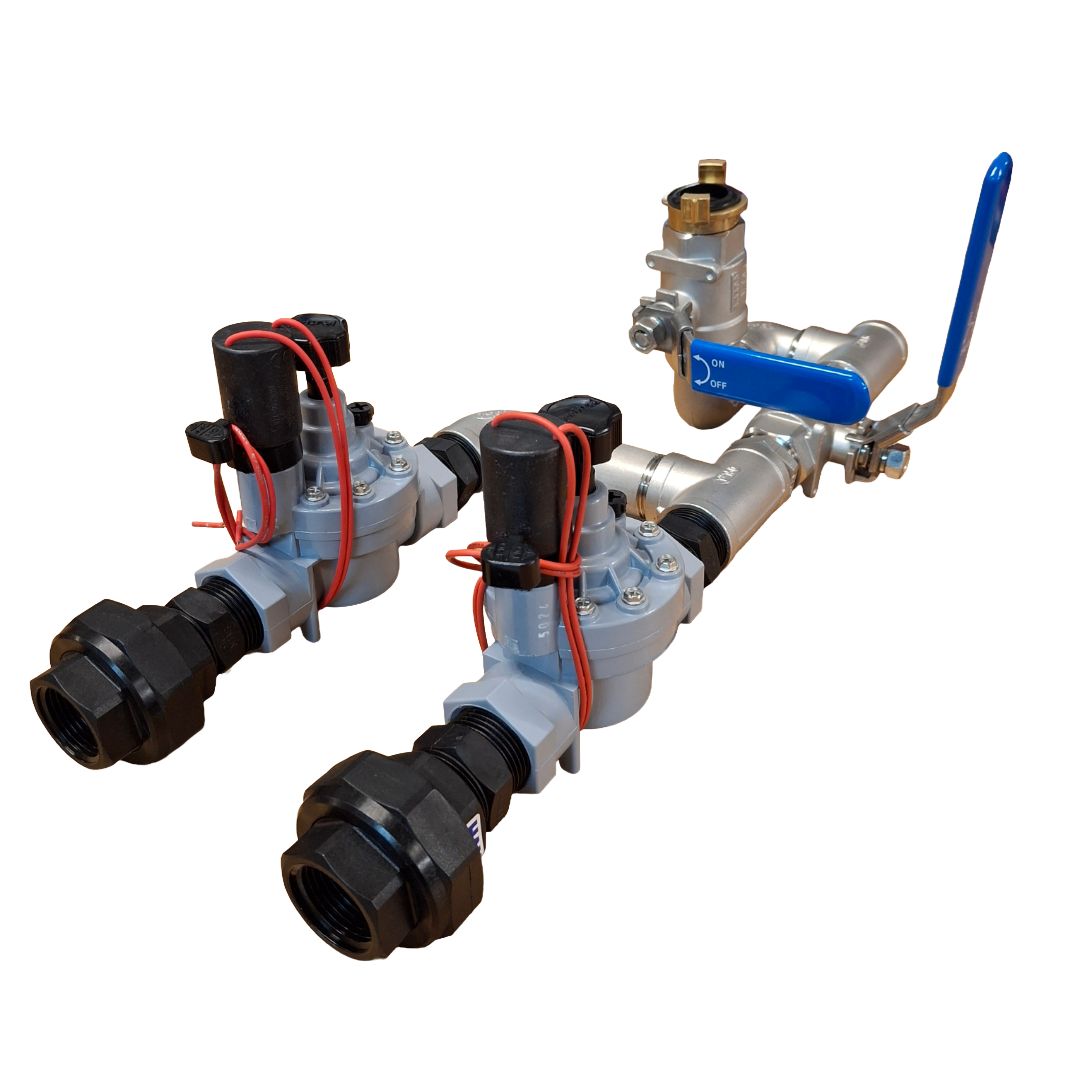

Pre-assembled twin-zone irrigation valve assembly combining a stainless-steel manifold, a 1 in GEKA hand-watering point and two Irritrol 2500 Series solenoid valves. It provides two controller-operated irrigation zones and a convenient hose or service point in one compact arrangement for golf, sports-turf and commercial systems.

Valve and manifold features

• Two independently controlled solenoid-valve outlets
• Union connections help simplify valve removal and servicing
• 1 in hand point with GEKA-compatible connection
• Floating stainless-steel metering system, internal and external bleed, captured screws and double-beaded diaphragm
• 24 VAC valves for compatible mains-powered irrigation controllers

Selection guidance

Irritrol lists the 2500 Series for flows from 0.25 to 30 US gpm. Check the exact threaded connection supplied for this assembled product. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
