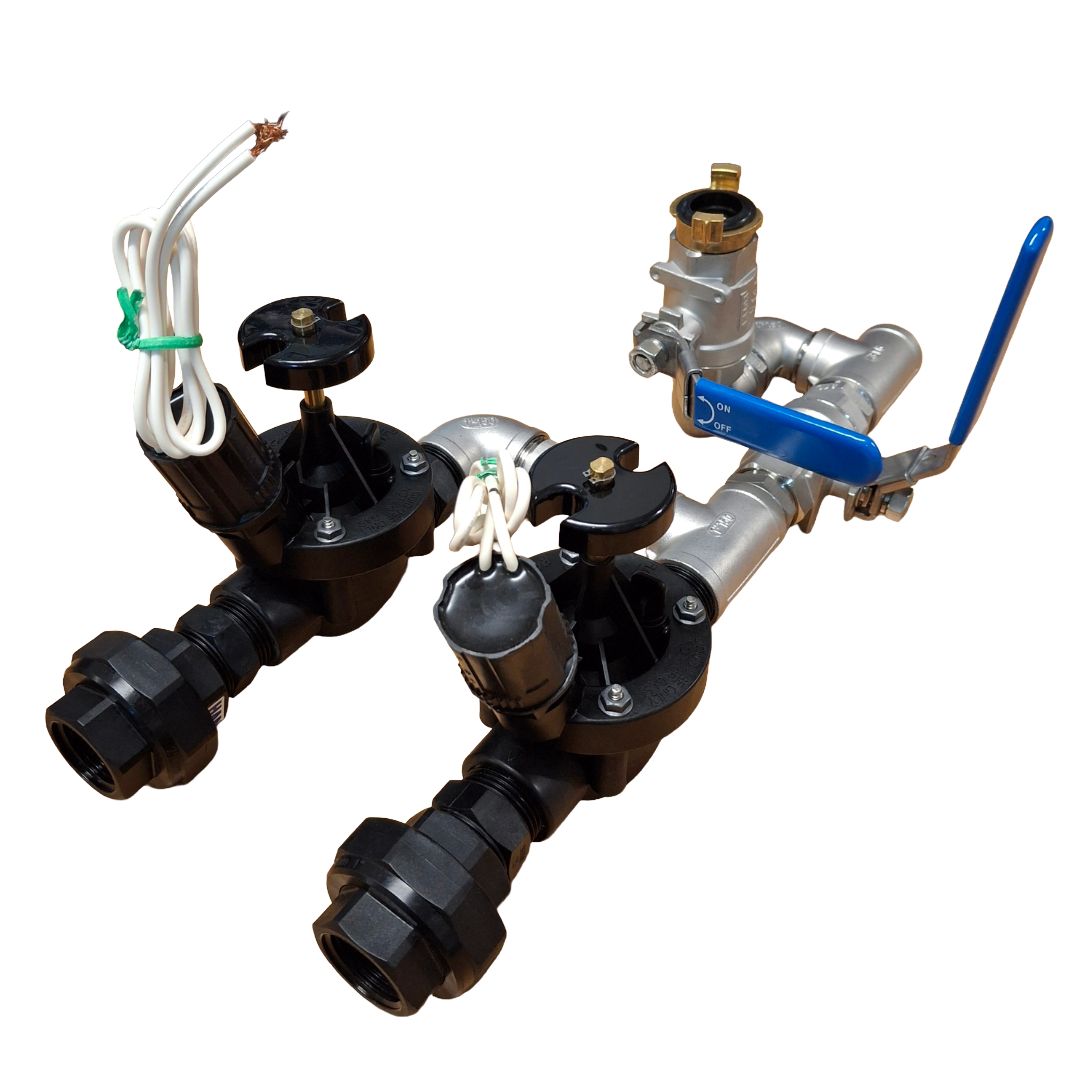

Pre-assembled twin-zone irrigation valve assembly combining a stainless-steel manifold, a 1 in GEKA hand-watering point and two Rain Bird PEB 1 in solenoid valves. It provides two controller-operated irrigation zones and a convenient hose or service point in one compact arrangement for golf, sports-turf and commercial systems.

Valve and manifold features

• Two independently controlled solenoid-valve outlets
• Union connections help simplify valve removal and servicing
• 1 in hand point with GEKA-compatible connection
• Heavy-duty glass-filled nylon valves with flow control, slow closing action, internal and external bleed, and captured solenoid parts
• 24 VAC valves for compatible mains-powered irrigation controllers

Selection guidance

Rain Bird specifies the PEB range for 1.38–13.8 bar; final valve sizing must follow the required flow and acceptable pressure loss. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
