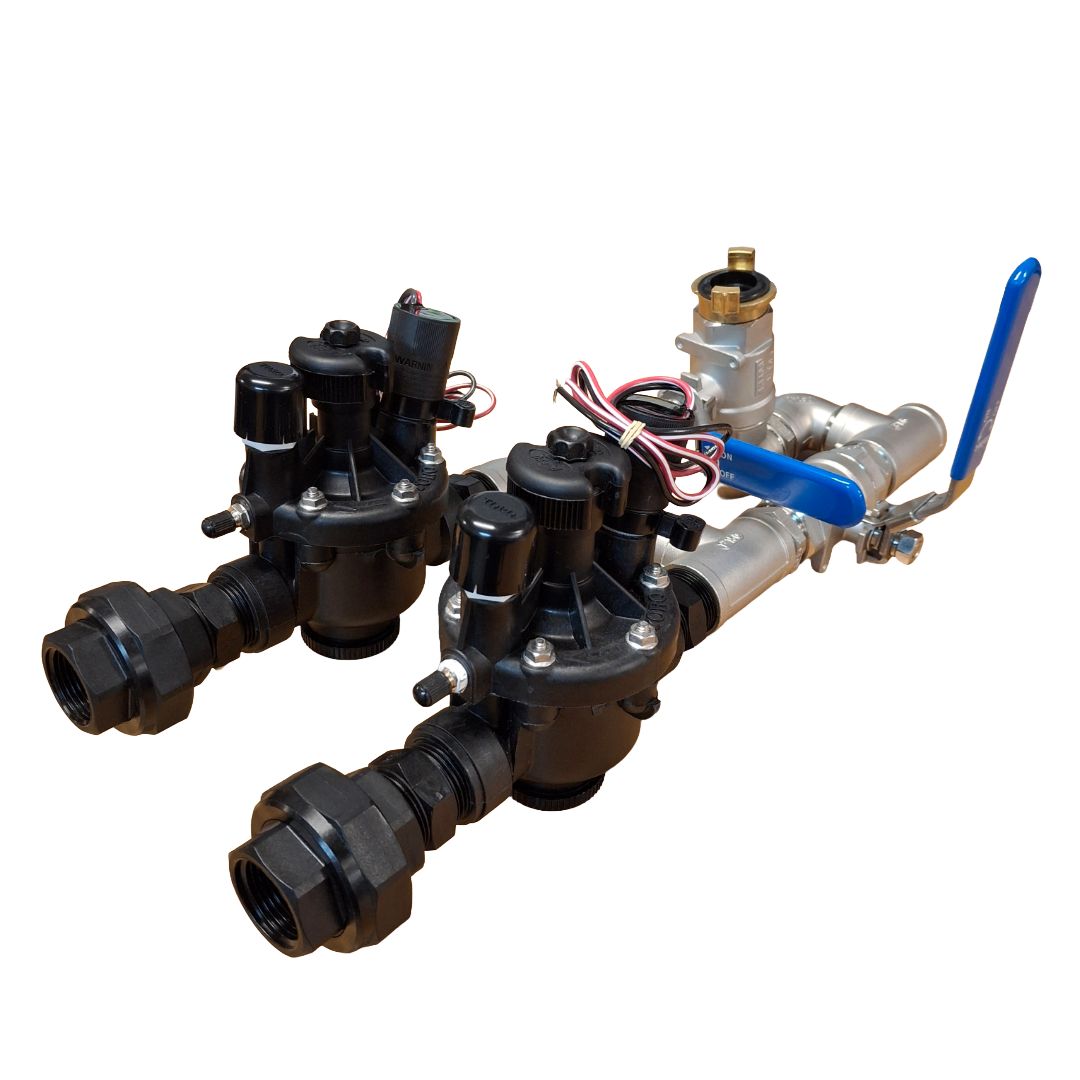

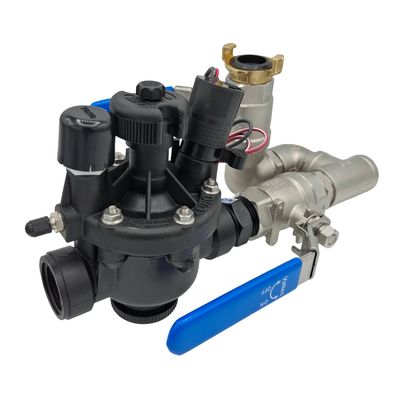

Pre-assembled twin-zone irrigation valve assembly combining a stainless-steel manifold, a 1 in GEKA hand-watering point and two Toro P220 1 in solenoid valves. It provides two controller-operated irrigation zones and a convenient hose or service point in one compact arrangement for golf, sports-turf and commercial systems.

Valve and manifold features

• Two independently controlled solenoid-valve outlets
• Union connections help simplify valve removal and servicing
• 1 in hand point with GEKA-compatible connection
• Glass-filled nylon valves with flow control, internal and external bleed, stainless-steel metering rod and downstream pressure test point
• DC-latching valves for compatible battery or DC-latching irrigation controllers; not interchangeable with 24 VAC coils

Selection guidance

Toro lists the 1 in P220 for 19–151 L/min and 0.7–15.2 bar. Pressure-regulating modules are separate options unless expressly stated. Confirm the controller output, connection arrangement, design flow, working pressure and available valve-box space before ordering.
