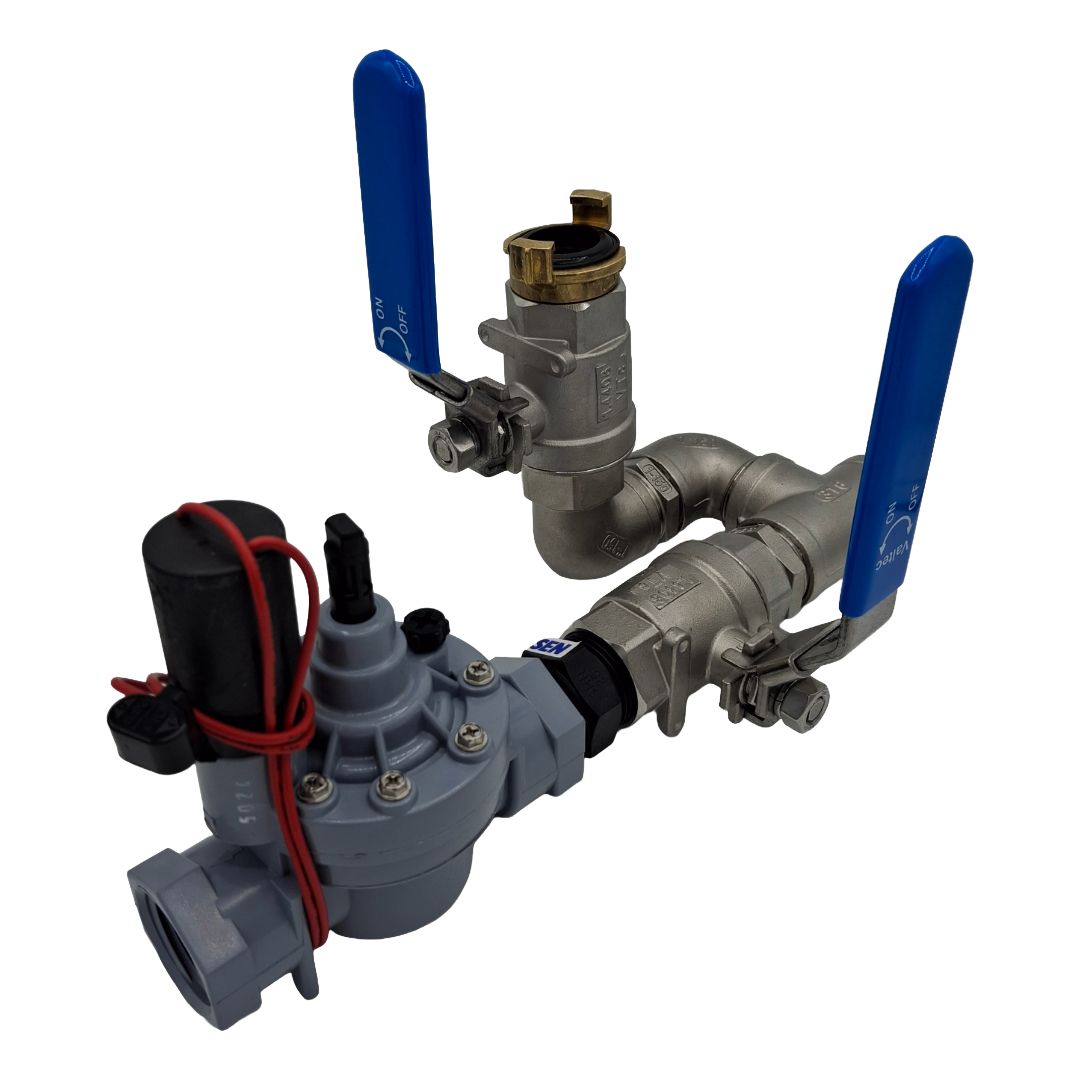

1″ Stainless Steel Isolation Valve with Hand Point — Complete with Irritrol 2500 Solenoid Valve

This assembly combines a 1″ stainless steel isolation valve (with manual hand‑point shut‑off) and an Irritrol 2500 Series 1″ solenoid valve. It provides both manual control and full automatic operation for reliable irrigation zone management in commercial, sports turf, or residential systems.

Key Features — Irritrol 2500 Solenoid Valve:

• 1″ stainless steel isolation valve with hand point for manual shut‑off and service isolation

• Designed to handle dirty water with debris‑tolerant, “floating metering system”

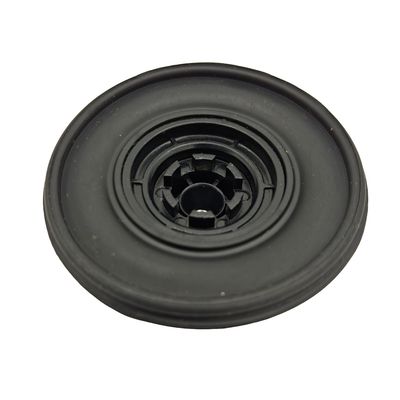

• Double‑beaded Santoprene® diaphragm ensures a tight, leak‑proof seal
• Both internal and external bleed / flush options for manual operation and cleaning
• Stainless steel metering system, corrosion‑ and UV‑resistant PVC body
• Optional flow‑control handle for precise adjustment of flow
• Captured bonnet screws for easy servicing without removing the entire valve

Specifications:

• Valve size: 1″ (≈ 25 mm) inlet/outlet
• Pressure rating: from 0.7 bar minimum up to approximately 10 bar (≈ 150 psi) of operation
• Flow range: about 0.06 to 45 m³/h depending on pressure and piping setup
• Solenoid: 24 V AC; inrush ~ 0.4 A, holding current ~ 0.2 A
• Body material: Durable PVC and stainless steel components
• Diaphragm material: Santoprene® with double bead design
• Seat seal: Buna‑N material
• Temperature rating: suitable for typical field use (moderate ambient & water temperatures)
