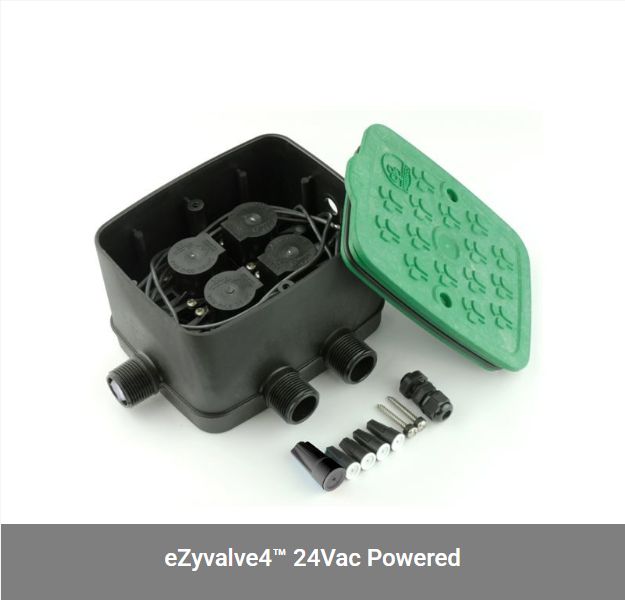

Antelco eZyvalve™ 4 – 24 VAC Solenoid Valve Box

The Antelco eZyvalve 4 is a compact, pre‑assembled irrigation valve box with four internal 24 VAC solenoid valves. Designed to simplify installation of multi‑zone irrigation systems, it provides a reliable and trouble‑free way to distribute water in gardens, landscapes, greenhouses, and nursery environments. It connects easily to a 24 VAC irrigation controller and is suitable for both above‑ground and below‑ground use.

Key Features:

• Four integrated solenoid valves powered by 24 VAC for automated zone control
• Pre‑assembled unit with no internal pipework, saving installation time
• High‑strength UV‑stabilised materials resist weather, dust, and pests
• Textured non‑slip lid with O‑ring seal and stainless steel screws for a watertight closure
• Four outlets and one inlet all with ¾″ BSP threaded connections for standard irrigation pipe‑fitments
• Includes cable seal and wire connectors, ready for controller wiring
• Suitable for drippers, sprays, micro‑sprinklers and other irrigation devices
• Designed for micro irrigation and moderate flow demands

Specifications:

• Model: eZyvalve 4 – 24 VAC solenoid version
• Valve count: 4 internal solenoid valves
• Connection size: ¾″ BSP male inlet and four ¾″ BSP male outlets
• Flow range: approx. 1 – 30 L/min per valve depending on pressure conditions
• Pressure range: approx. 20 kPa – 1250 kPa (0.2 – 12.5 bar)
• Solenoid electrical: 24 V AC, inrush ~320 mA, holding ~260 mA @ 50 Hz
• Ambient operating temperature: approx. 2 °C – 60 °C
• Construction: UV‑stabilised, weather‑resistant plastics
• Installation: Above or below ground; requires 24 VAC irrigation controller and cable
• Ideal for: Landscape zones, home gardens, greenhouses, nursery irrigation
