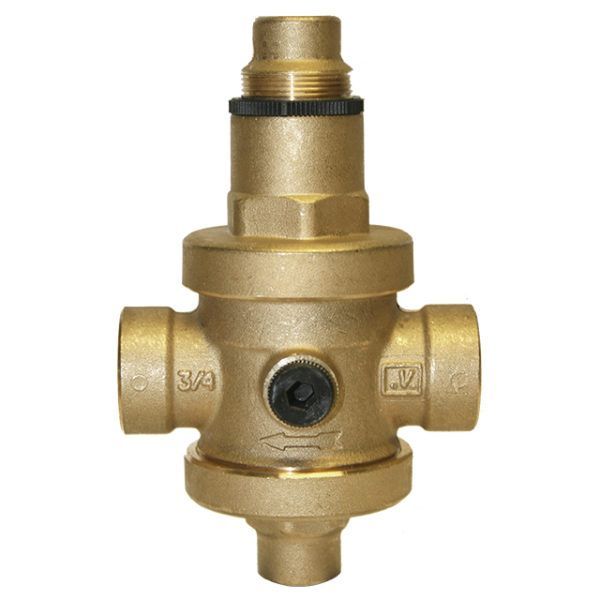

Brass Pressure Reducing Valve – 25 bar Inlet (WRAS Approved)

This brass pressure reducing valve is engineered for high‑pressure water systems, safeguarding downstream equipment by automatically lowering inlet pressures up to 25 bar, to a controlled outlet pressure. Its WRAS approval guarantees suitability for potable water installations.

Key Features:

• Direct‑acting pressure reducing valve for water service
• Brass body, brass internal components, stainless steel seat for durability
• WRAS approved for use in drinking water systems
• Adjustable outlet pressure between 0.5 bar and 6 bar
• ¼″ gauge port supplied for pressure monitoring
• Suitable for high inlet pressures (up to 25 bar)
• Ideal for domestic, commercial and irrigation water distribution systems

Specifications:

• Maximum inlet pressure: 25 bar
• Adjustable outlet pressure range: 0.5 to 6 bar
• Material: Brass body and internals; stainless steel seat
• Fitting size options: ½″, ¾″, 1″, 1¼″, 1½″, 2″, 2½″, 3″, 4″ BSPP female ( Please contact us for sizes not available to purchase)
• Temperature rating: –10 °C to +80 °C
• Application: Potable water, pressure regulation ahead of irrigation systems, boiler feed, water supply network
