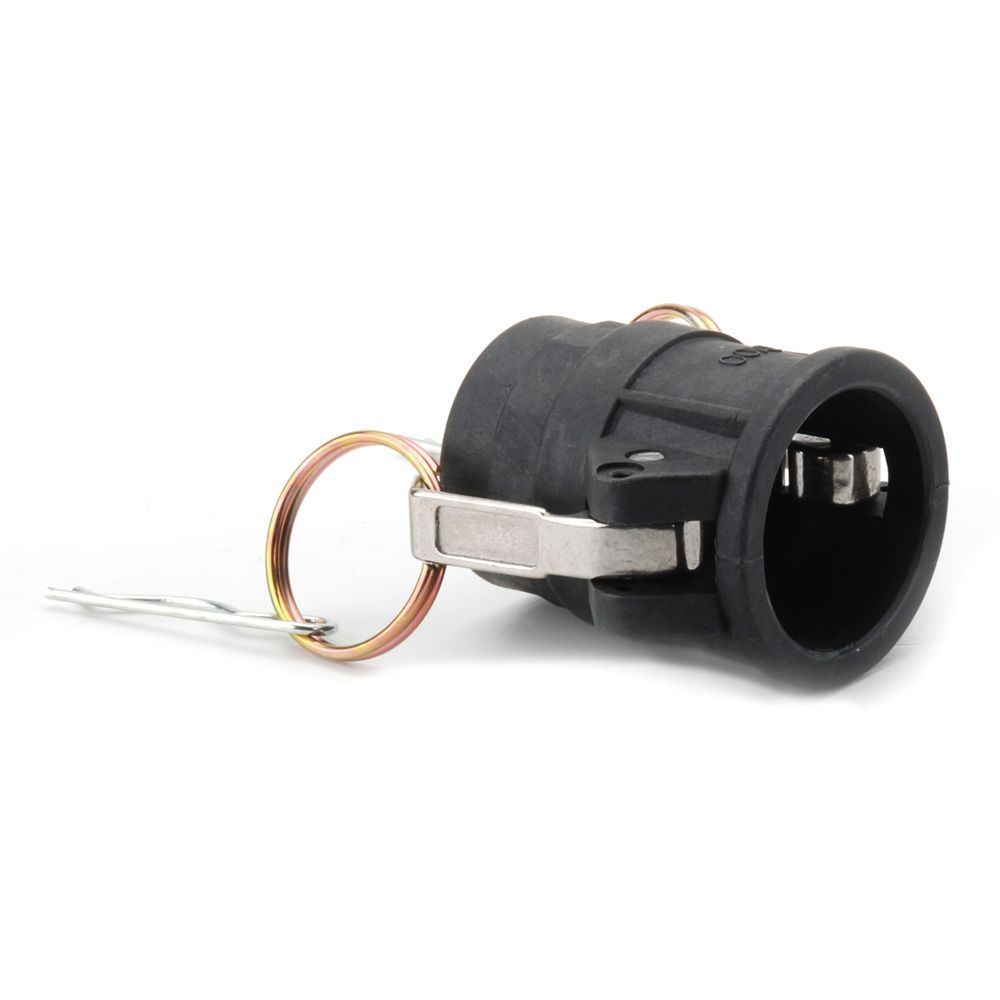

Camlock Type D Coupling to 1" Female Thread

The Camlock Type D Coupling to 1" Female Thread is a quick-connect fitting designed for fast and secure hose-to-pipe connections in low- to medium-pressure fluid handling systems. Featuring a female camlock socket on one end and a 1" BSP female threaded connection on the other, this coupling is ideal for use in agriculture, irrigation, water transfer, and industrial applications where frequent disconnection is required.

Key Features:

• Type D camlock with 1" BSP female threaded outlet
• Enables quick and tool-free hose or pipe disconnection
• Strong cam arms with locking handles for secure seal
• Durable construction in polypropylene
• Resistant to corrosion and chemical exposure
• Ideal for irrigation, tank filling, and fluid transfer systems

Specifications:

• Connection type: Camlock Type D x 1" BSP female thread
• Size: 1" (25 mm)
• Operating pressure: Typically up to 10 bar (material dependent)
• Standards: Compatible with ISO 14420 / MIL-C-27487 camlock fittings
• Applications: Suitable for water, fuel, and chemical transfer
