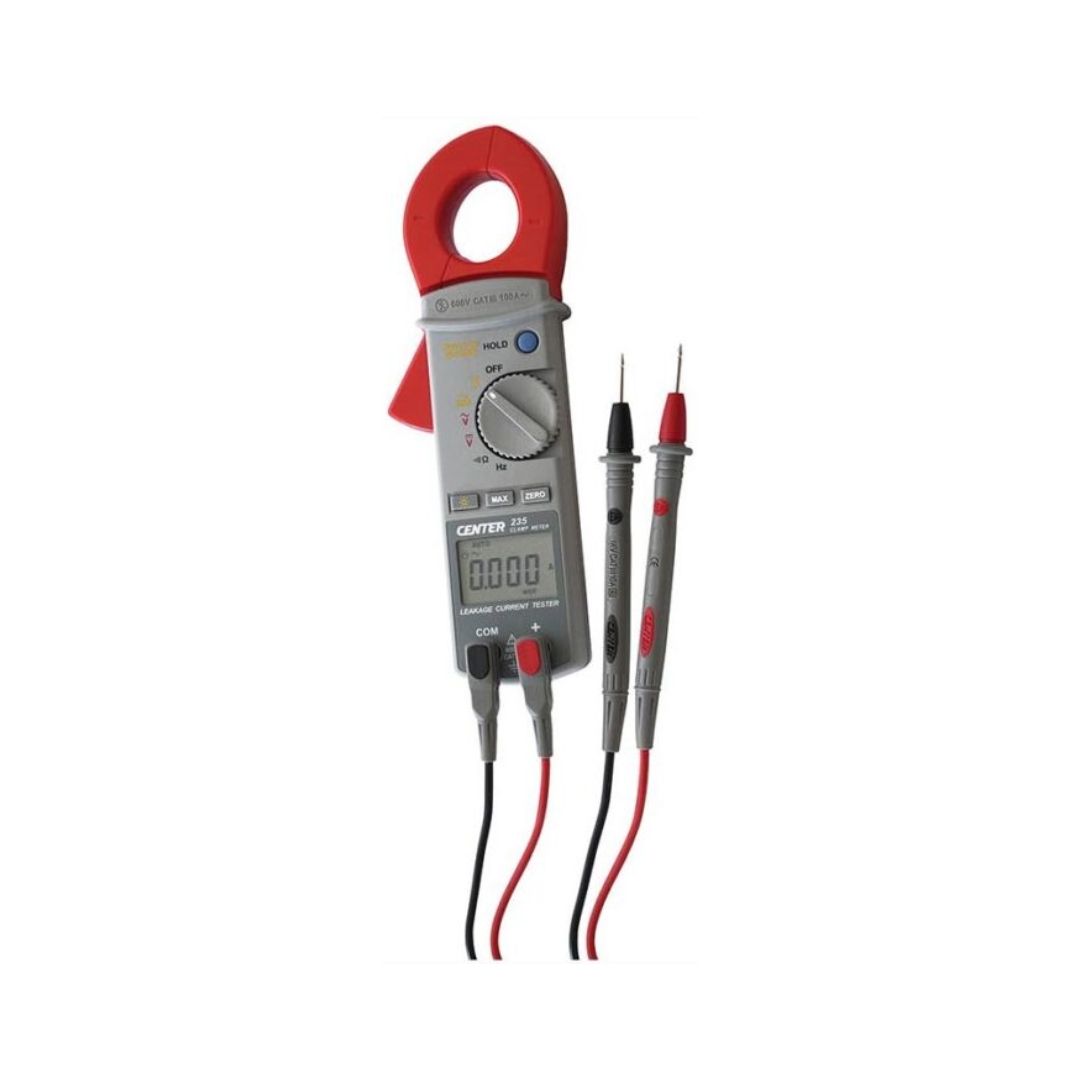

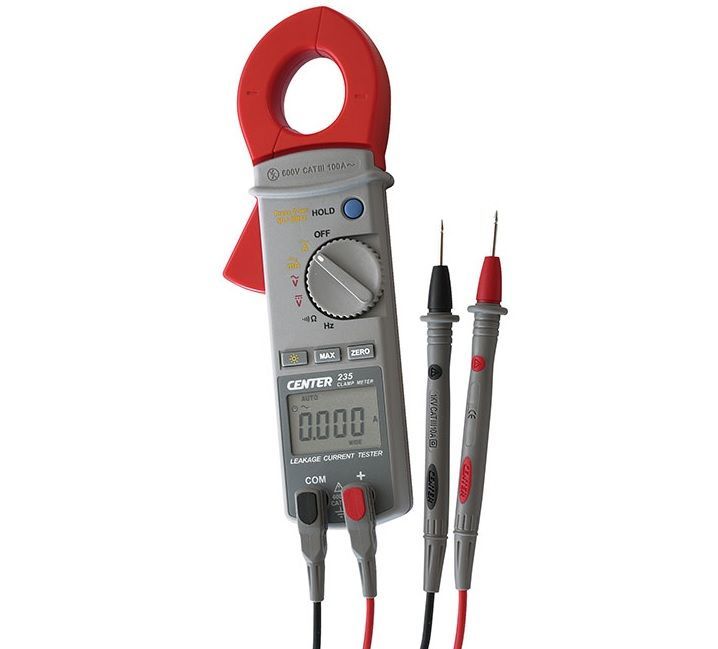

Center 235 Advanced AC Leakage Clamp Multimeter

The Center 235 is a high-precision AC leakage clamp multimeter specifically designed to measure very low levels of current leakage, making it ideal for diagnosing faults in irrigation control systems, solenoid circuits, and general electrical maintenance. Its advanced clamp sensor detects leakage currents down to microamp levels without disconnecting the circuit, offering a non-invasive and efficient fault-finding tool.

Key Features:

• Measures AC leakage current down to 0.01 mA (10 µA)
• Jaw opening: 23 mm – suitable for most control cables and solenoid wiring
• True RMS measurement for accurate readings under all load types
• Large backlit display for easy visibility in low-light conditions
• Dual display for simultaneous current and frequency readings
• Data hold, max/min, and peak capture functions
• Auto power-off and low battery indicator
• Ideal for pinpointing earth leakage, insulation breakdown, or faulty decoders in irrigation systems

Specifications:

• Current measurement range: 0.01 mA to 100 A AC
• Resolution: 0.01 mA
• Frequency range: 40 Hz – 1 kHz
• Clamp size: 23 mm jaw opening
• Display: Dual LCD with backlight
• Power: 9V battery
• Safety rating: CAT III 300V
• Application: Irrigation electrical diagnostics, leakage testing, facility maintenance

*This is the meter our operatives use at JK Irrigation Ltd.
