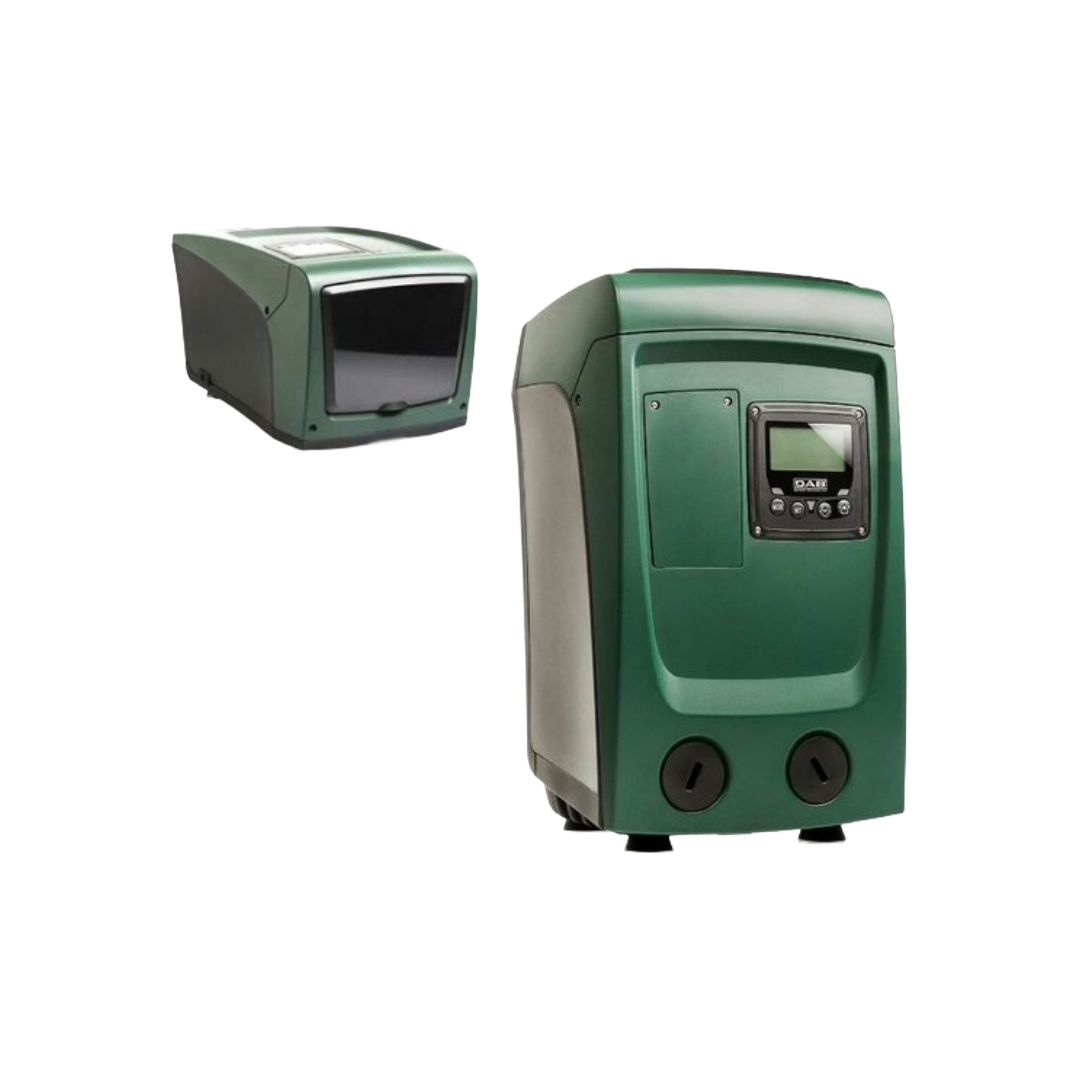

DAB EsyBox Mini 3 Automatic Booster Pump
The DAB EsyBox Mini 3 is DAB’s compact all-in-one electronic pressurisation system, designed for domestic dwellings and light commercial premises. It combines a self-priming multi-stage pump, integrated inverter, pressure and flow sensors, 1-litre expansion vessel and LCD display within a compact 16 kg housing.
Unlike conventional fixed-speed booster pumps, the EsyBox Mini 3 continuously adjusts its motor speed to match actual water demand. This helps maintain consistent water pressure without wasting energy through unnecessary over-pumping.
With a noise level of just 45 dB(A) at full load, the EsyBox Mini 3 is exceptionally quiet, making it well suited to installations in kitchens, utility rooms, plant rooms and other locations where noise needs to be kept to a minimum.
Key Features:
- Compact all-in-one automatic pressurisation system
- Self-priming multi-stage pump
- Integrated variable-speed inverter
- Maintains consistent pressure as water demand changes
- Automatically starts and stops according to demand
- Continuously adjusts motor speed to reduce unnecessary energy consumption
- Integrated pressure and flow sensors
- Built-in 1-litre expansion vessel
- Integrated non-return valve
- LCD display for setup and system monitoring
- Built-in dry-running protection
- Quiet operation at just 45 dB(A) at full load
- Compact 16 kg housing
- 1″ BSP inlet connection
- Suitable for domestic and light commercial applications
- Ideal for water pressure boosting, garden irrigation and rainwater harvesting systems
Specifications:
- Manufacturer: DAB
- Model: EsyBox Mini 3
- Pump type: Self-priming multi-stage automatic booster pump
- Control: Integrated variable-speed inverter
- Power supply: 230 V single phase
- Frequency: 50 Hz
- Inlet connection: 1″ BSP
- Expansion vessel: 1 litre
- Display: Integrated LCD
- Weight: 16 kg
- Noise level: 45 dB(A) at full load
- Automatic start/stop: Yes
- Dry-run protection: Yes
- Integrated non-return valve: Yes
- Application: Domestic and light commercial water boosting, irrigation and rainwater harvesting
