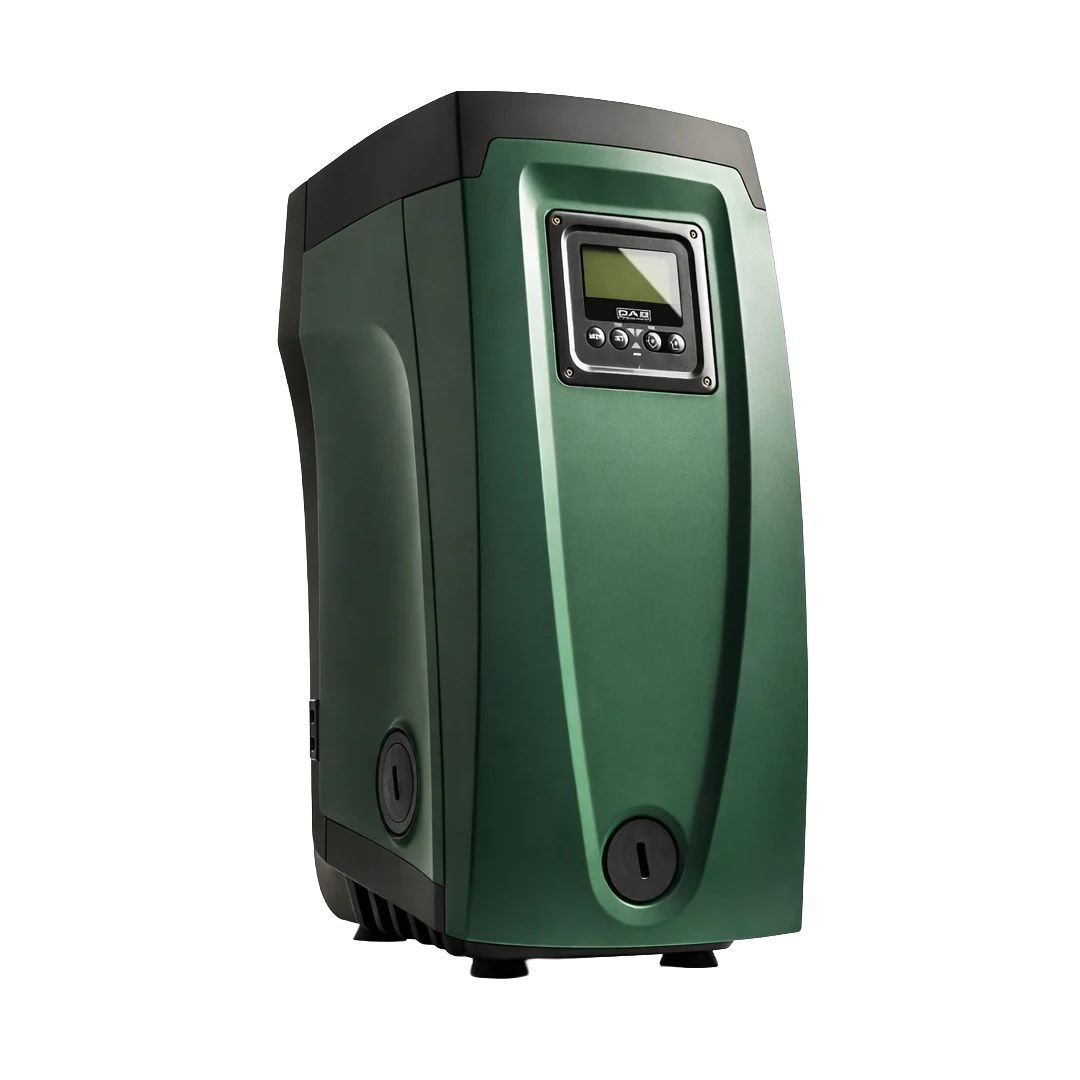

DAB EsyBox Automatic Booster Pump
The DAB EsyBox is a high-performance all-in-one electronic pressurisation system designed for domestic, residential and light commercial water boosting applications. It combines a self-priming multi-stage pump, integrated variable-speed inverter, pressure and flow sensors, expansion vessel and digital display within one compact unit.
Unlike conventional fixed-speed pumps, the EsyBox continuously adjusts its motor speed to match actual water demand. This provides constant water pressure while reducing unnecessary energy consumption, making it an efficient solution for properties with varying water requirements.
Its self-priming design makes the EsyBox particularly versatile, allowing it to be used for boosting from suitable storage tanks and water supplies. Quiet operation and a compact design also allow the pump to be installed in locations where space and noise are important considerations.
Key Features:
- All-in-one automatic water pressure booster system
- Self-priming multi-stage pump
- Integrated variable-speed inverter
- Maintains consistent pressure as water demand changes
- Automatically starts and stops according to demand
- Variable-speed operation helps reduce energy consumption
- Integrated pressure and flow sensors
- Built-in expansion vessel
- Integrated non-return valve
- Digital display for setup, adjustment and system monitoring
- Built-in dry-running protection
- Protection against abnormal operating conditions
- Quiet operation for residential installations
- Compact design simplifies installation
- Suitable for domestic and light commercial applications
- Ideal for water pressure boosting, irrigation and rainwater harvesting systems
Specifications:
- Manufacturer: DAB
- Model: EsyBox
- Pump type: Self-priming multi-stage automatic booster pump
- Control: Integrated variable-speed inverter
- Power supply: 230 V single phase
- Frequency: 50 Hz
- Inlet connection: 1″ BSP
- Outlet connection: 1″ BSP
- Maximum pressure: 8 bar
- Maximum flow rate: Approximately 7.2 m³/h
- Maximum head: Approximately 65 m
- Automatic start/stop: Yes
- Integrated expansion vessel: Yes
- Integrated non-return valve: Yes
- Dry-run protection: Yes
- Display: Integrated digital control display
- Application: Domestic and light commercial pressure boosting, irrigation and rainwater harvesting
