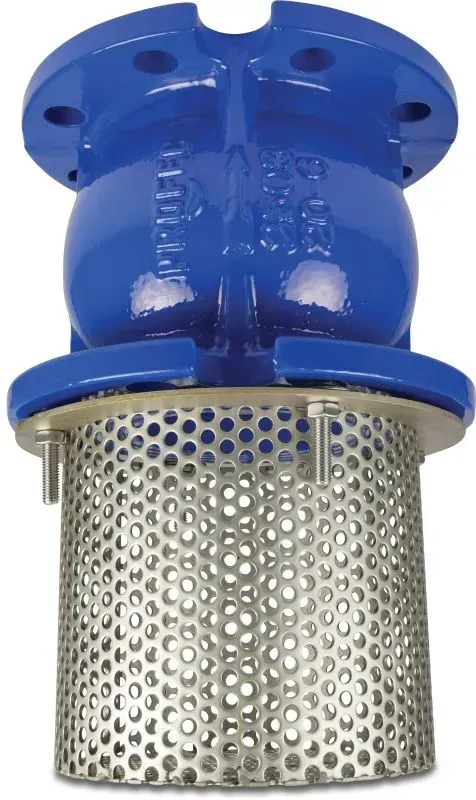

Foot Valve Cast Iron GG 25 – DN80 DIN Flange

This foot valve is a robust and high-performance solution designed for irrigation, pumping, and water systems requiring secure backflow prevention. Made from GG 25 cast iron and fitted with a stainless steel 304 internal screen, it is built to handle demanding flow conditions. The DN80 DIN flange design ensures compatibility with a wide range of pipework, and the valve is pressure-rated for both PN10 and PN16 systems.

Key Features:

• DN80 flanged foot valve
• GG 25 cast iron body for high strength and durability
• Stainless steel 304 screen for corrosion resistance
• DIN flange connection – easy to integrate into flanged pipe systems
• Blue epoxy coating for added weather and corrosion protection
• Rated to 16 bar operating pressure
• Ideal for use in suction lines of irrigation and pumping systems
• Prevents backflow and maintains pump prime

Specifications:

• Nominal diameter: DN80
• Material: Cast iron (GG 25) body, stainless steel 304 strainer
• Connection: DIN flange, PN10/16 compatible
• Pressure rating: 16 bar
• Colour: Blue (epoxy coated)
• Application: Irrigation, industrial, agricultural and pumping installations
