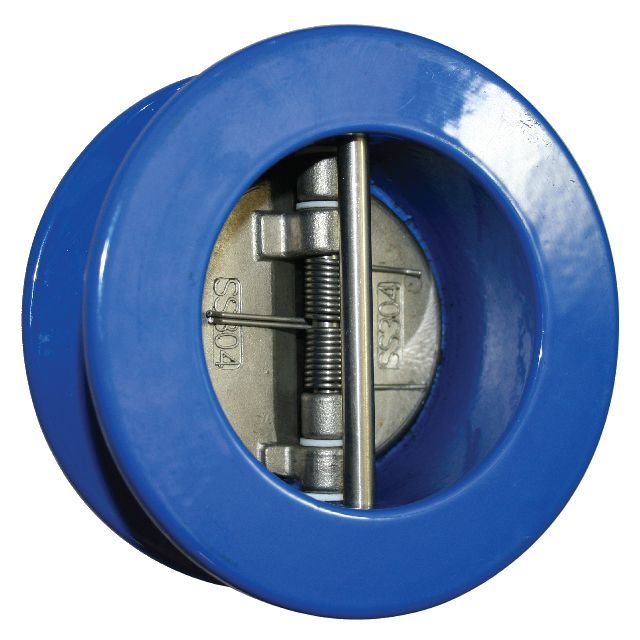

PN16 dual-plate check valve with an EPDM seat installs between compatible flanges to limit reverse flow in pump and water-distribution systems.

Product details

• Sizes: DN50, DN65, DN80 and DN100
• Pressure rating: PN16
• Epoxy-coated cast-iron body
• Stainless-steel plates and springs
• EPDM seat
• Stated temperature range: 0°C to 120°C
• WRAS approved

Select the valve from the required flow, pressure loss and system duty. Confirm flange standard, face-to-face dimensions, orientation, fluid and temperature compatibility before ordering. WRAS approval does not remove the need to select the correct backflow protection arrangement under the applicable water regulations.
