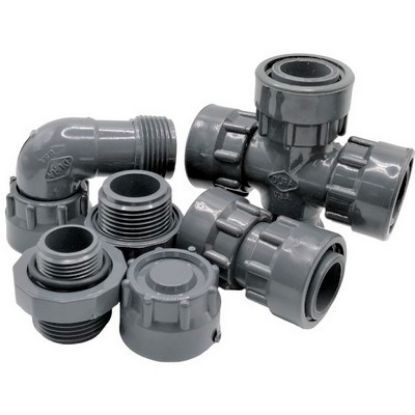

The Dura PVC Manifold System is a modular range of fittings for dividing one irrigation water supply into multiple valve zones. O-ring-sealed swivel connections allow compatible manifold parts and electric valves to be assembled by hand, then separated later for expansion, repair or valve replacement.

Available parts

• End cap
• Female/female and female/male union couplings
• Union cross and union elbows
• One, two, three and four-outlet manifold bodies
• Reducer nipple and double nipple

Selection and assembly

• Grey PVC manifold components
• 1 in main manifold connections, with the listed ¾ in reducer option
• O-ring-sealed swivel joints require no PTFE tape or jointing paste
• Hand-tight assembly for accessible valve-box installations

Each option is an individual component, not a complete manifold kit. Select every part and valve needed for the intended layout. Keep O-rings clean and correctly seated, and do not use these PVC fittings for compressed air or gas.
