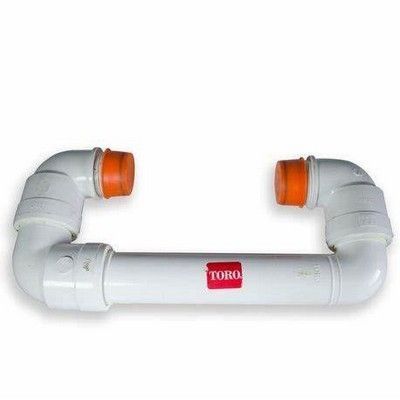

Dura swing joints provide an adjustable connection between buried irrigation pipework and a compatible Toro sprinkler. Their articulated elbows allow the sprinkler height and position to be set accurately and help isolate the rigid mainline from minor movement or impact at the head.

Available configurations

• Nominal 12 in (305 mm) lay length
• BSP inlet options in 1 in, 1¼ in and 1½ in sizes
• BSP or ACME sprinkler-outlet options
• Selected variants include an additional inlet elbow
• Double O-ring-sealed swing-joint components

Select the exact variant from the mainline connection, inlet size and sprinkler outlet thread. BSP and ACME are different connection systems: threaded BSP joints require the sealing method specified for the fitting, while the listed ACME outlet seals with its O-ring. Do not force one thread form into the other.
