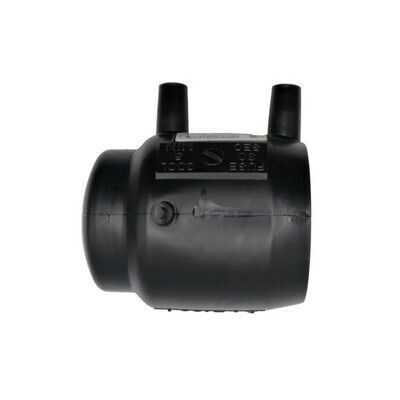

This Radius electrofusion end cap permanently closes the end of compatible polyethylene pressure pipe. It is used where a PE water or gas main, branch or future extension point needs a fused, end-load-bearing termination.

Available sizes

• 50 mm
• 63 mm
• 90 mm
• 110 mm
• 125 mm

Product and installation guidance

• PE100 electrofusion fitting
• Exposed heating-wire design for effective heat transfer
• Insertion stop helps confirm that the pipe is fully engaged
• Fusion information is provided on the fitting for compatible electrofusion equipment

The pipe end must be cut square, scraped, cleaned, re-rounded where necessary and clamped throughout fusion and cooling. Installation must follow the Radius procedure using calibrated, compatible equipment. Radius publishes water, wastewater and gas approvals for its electrofusion range, but the approval and operating pressure applicable to the selected fitting and service must be confirmed before ordering.
