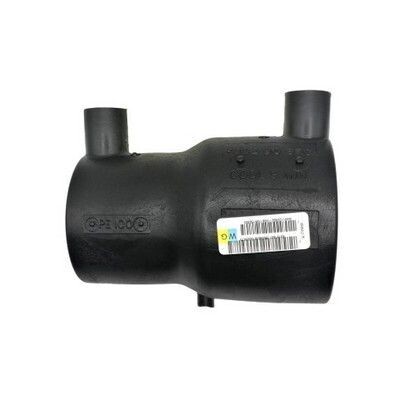

This Radius electrofusion reducer joins two compatible polyethylene pressure pipes of different outside diameters. It provides a fused transition where a PE water or gas pipeline changes size.

Available reductions

• 63 mm to 50 mm
• 90 mm to 63 mm
• 110 mm to 90 mm
• 125 mm to 110 mm

Product and installation guidance

• PE100 electrofusion fitting
• Exposed heating-wire design
• End-load-bearing joint when installed correctly
• Fusion data provided for compatible control equipment

Select both pipe diameters and confirm the pipe SDR, operating pressure and service approval. Each pipe end must be cut square, scraped, cleaned, re-rounded where required and held in alignment throughout fusion and cooling. Installation must follow the Radius procedure and be completed by a trained operator.
