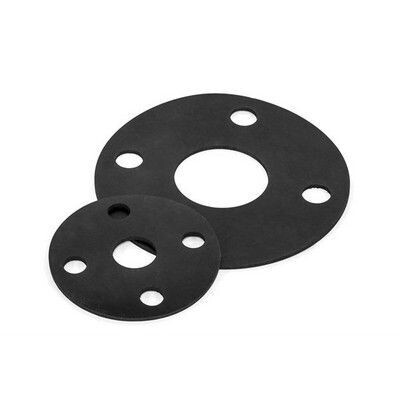

EPDM Full Face Gasket

The EPDM Full Face Gasket is a high-performance sealing solution used in flange connections across water, chemical, and general fluid applications. Manufactured from EPDM (ethylene propylene diene monomer) rubber, it provides excellent resistance to weathering, ozone, UV exposure, and a wide range of chemicals. With bolt holes precisely aligned around the full face, it ensures even pressure distribution and a long-lasting, watertight seal.

Key Features:

• Made from durable EPDM rubber for long service life
• Full face design with bolt holes for secure flange sealing
• Excellent resistance to UV, ozone, weathering, and ageing
• Suitable for potable water, chemicals, and air systems
• Maintains flexibility across a wide temperature range
• Ideal for water treatment, irrigation, and industrial piping systems

Specifications:

• Material: EPDM rubber (ethylene propylene diene monomer)
• Thickness: Commonly available in 3 mm (others on request)
• Operating temperature: –40°C to +120°C (approx.)
• Pressure rating: Typically up to 10 bar (depends on flange type)
• Standards: Conforms to WRAS or EN 681-1 (model dependent)

EDPM Full Face gasket to PN16.

WRAS Approved.

DN50 (Normally used on 63mm pipes/2")
DN80 (Normally used on 90mm pipes/3")
DN100 (Normally used on 110mm pipes/4")
