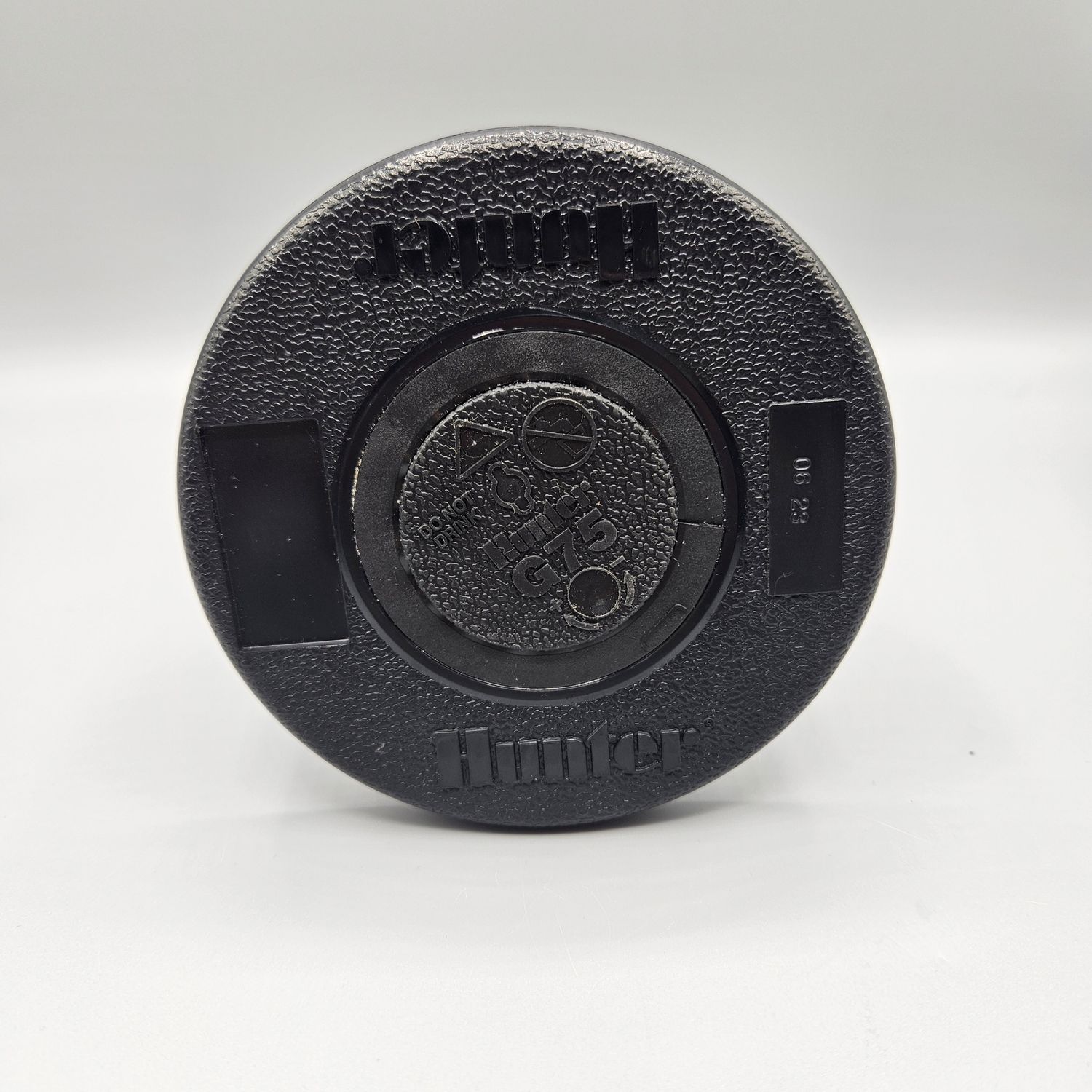

Hunter G-75-B Adjustable-Arc Golf Rotor

The Hunter G-75-B is a block-model golf and large-turf rotor with adjustable full- or part-circle coverage. Its through-the-top servicing and interchangeable nozzles make it suitable for new irrigation layouts, replacements and course upgrades.

Key specifications

• Adjustable arc: 50° to 360°
• Radius: 14.3 to 21.6 m
• Flow: 1.75 to 7.34 m³/h
• Operating pressure: 2.8 to 6.9 bar
• 1¼ in female ACME inlet
• Block check holds up to 3 m elevation difference
• Nozzle range: #8 to #28

Selection note: This is a block rotor without an integral control valve. Check the required nozzle, arc and hydraulic duty before ordering.
