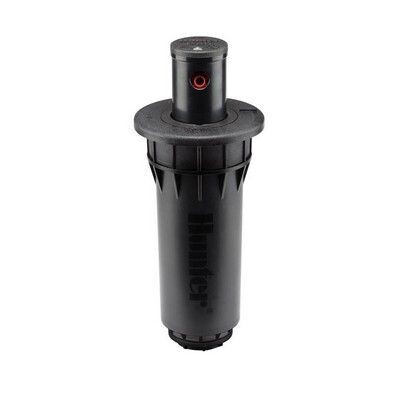

Hunter G-80-B Full-Circle Golf Rotor

The Hunter G-80-B is a dedicated full-circle block rotor for golf courses and large turf areas. It combines an impact-resistant flanged body with through-the-top servicing and PressurePort nozzle technology.

Key specifications

• True full-circle operation
• Radius: 14.9 to 29.6 m across the available nozzle range
• Flow: 3.23 to 13.29 m³/h
• Operating pressure: 3.4 to 6.9 bar
• 1¼ in female ACME inlet
• Block check holds up to 3 m elevation difference
• Overall height 24.5 cm; pop-up 8 cm; flange diameter 13.7 cm

Selection note: This is a block rotor without an integral control valve. Match the installed nozzle to the required radius, flow and pressure.
