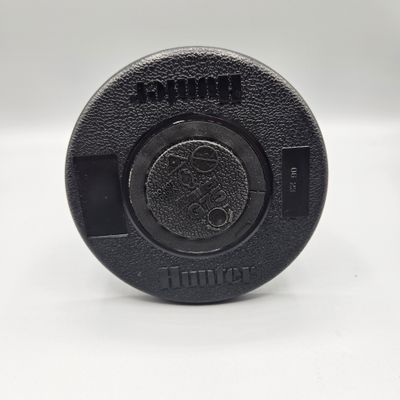

The Hunter PGJ-04 is a compact 10 cm pop-up gear-driven rotor for lawn areas that need more range than a spray head but less than a full-size rotor. Its ½ in inlet suits smaller residential and light commercial irrigation zones.

Key specifications

• Pop-up height: 10 cm
• Inlet: ½ in
• Adjustable arc: 40° to 360°
• Radius: 4.3 to 10.7 m, depending on nozzle and pressure
• Flow: 0.08 to 1.00 m³/hr
• Nozzle 2.0 installed

Choose and size the nozzle to match the available pressure, required radius and adjacent heads. Do not mix spray and rotor precipitation rates on a zone unless the design has been checked.
