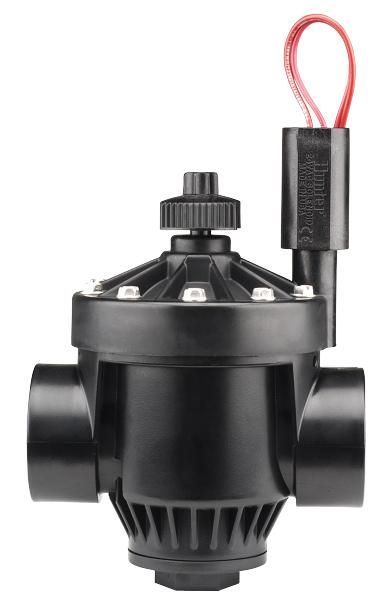

The Hunter PGV-151-B is a 1½ in BSP irrigation solenoid valve for larger automatic watering zones. Its combination globe/angle body gives installers two layout options, while the flow-control stem helps commission and balance the zone.

Key specifications

• Connection: 1½ in (40 mm) female BSP inlet and outlet
• Configuration: combination globe or angle
• Solenoid: 24 VAC
• Flow control: yes
• Flow range for the 1½ in and 2 in PGV family: 5 to 34 m³/hr

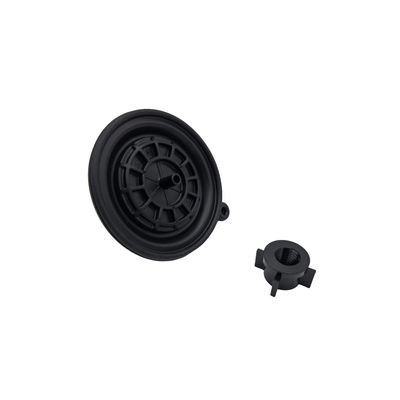

• Captive bonnet screws and double-beaded diaphragm

Use with a compatible 24 VAC irrigation controller. Check the design flow, pressure loss and installation orientation before ordering; this is not a 9 V DC-latching valve.
