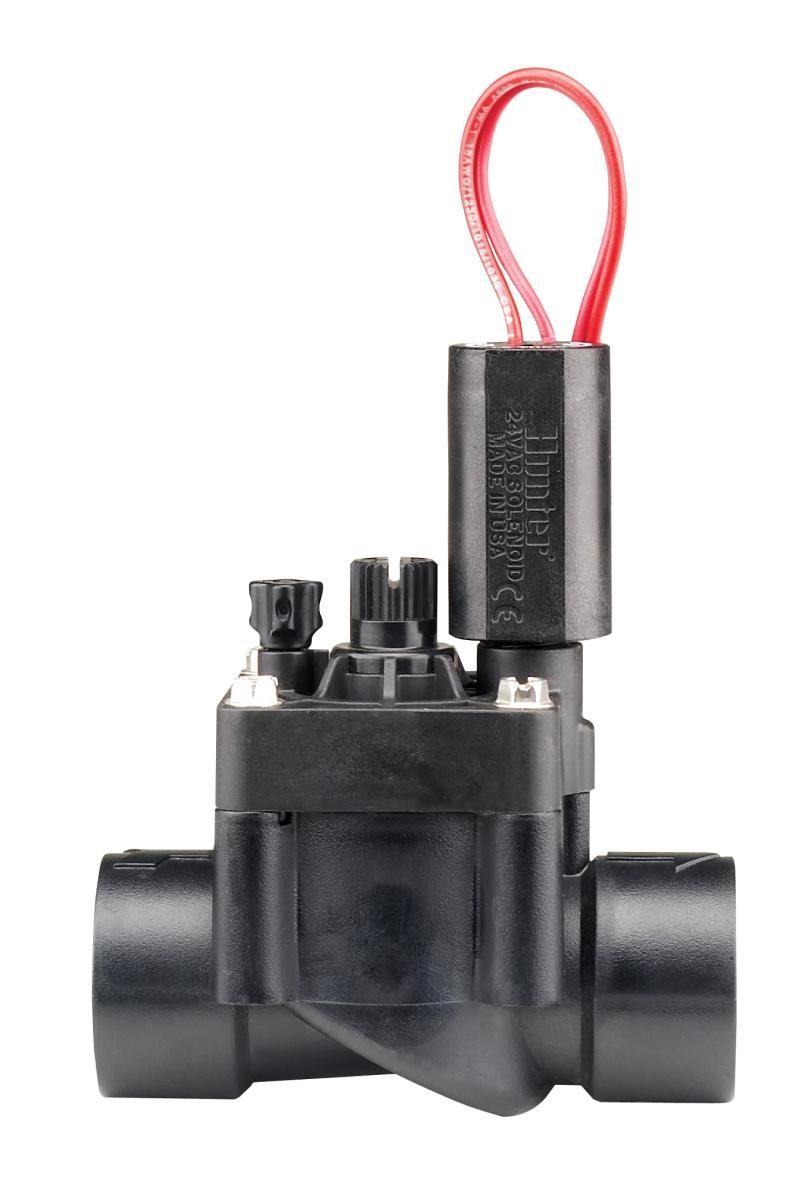

The Hunter PGV-101-G-B is a 1 in female BSP solenoid valve for automatic residential and light commercial irrigation. It provides electrical zone control and includes manual flow adjustment for commissioning.

Key specifications

• Connection: 1 in (25 mm) female BSP inlet and outlet
• Solenoid: 24 VAC
• Flow control: yes
• Recommended pressure range: 1.5 to 10 bar
• Flow range: 0.05 to 9 m³/hr
• UV- and corrosion-resistant plastic body
• Double-beaded diaphragm and captive bonnet screws

Use with a compatible 24 VAC irrigation controller and install in the flow direction marked on the valve. This AC model is not suitable for battery controllers that require a DC-latching solenoid.
