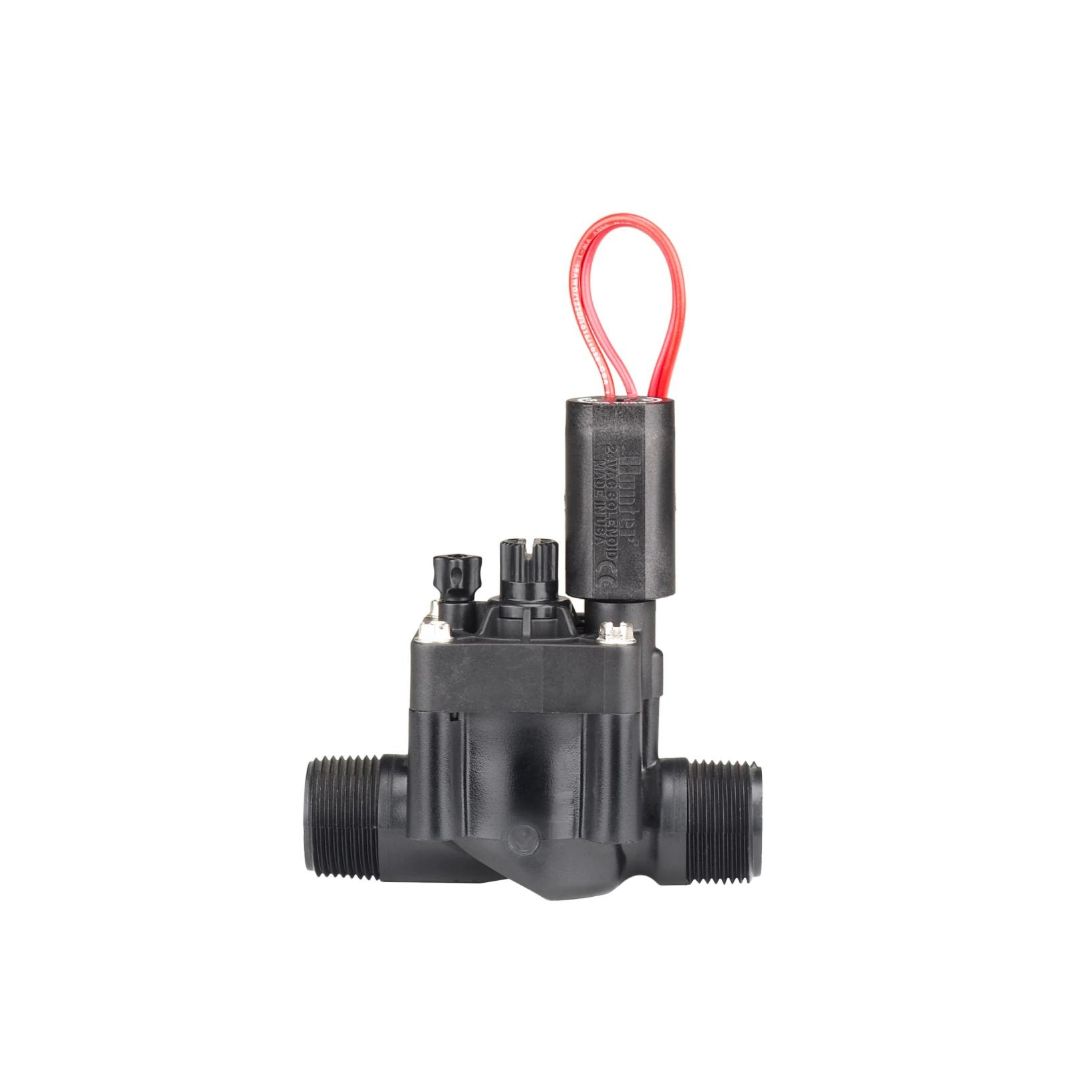

The Hunter PGV-101-MM-B is a 1 in male BSP solenoid valve for automatic residential and light commercial irrigation. Male threaded inlet and outlet connections can simplify installation into compatible female fittings, and the flow-control stem supports zone commissioning.

Key specifications

• Connection: 1 in (25 mm) male BSP inlet and outlet
• Solenoid: 24 VAC
• Flow control: yes
• Recommended pressure range: 1.5 to 10 bar
• Flow range: 0.05 to 9 m³/hr
• UV- and corrosion-resistant plastic body
• Double-beaded diaphragm and captive bonnet screws

Use with a compatible 24 VAC irrigation controller. Confirm that male BSP connections suit the pipework; this is not the female-thread or DC-latching version.
