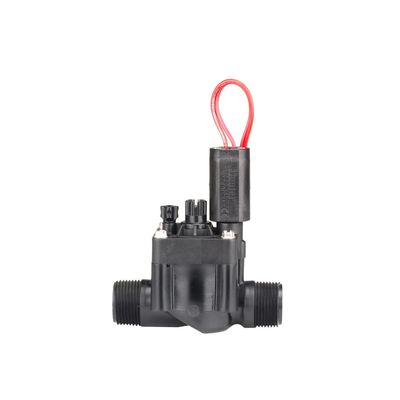

The Hunter PGV-201-B is a 2 in BSP irrigation solenoid valve for higher-flow automatic watering systems. Its combination globe/angle body offers installation flexibility, and the flow-control stem assists with commissioning and zone balancing.

Key specifications

• Connection: 2 in (50 mm) female BSP inlet and outlet
• Configuration: combination globe or angle
• Solenoid: 24 VAC
• Flow control: yes
• Flow range for the 1½ in and 2 in PGV family: 5 to 34 m³/hr
• Captive bonnet screws and double-beaded diaphragm

Use with a compatible 24 VAC irrigation controller. Check the design flow, pressure loss and chosen globe or angle layout before ordering.
