Reduce between two PE pipe sizes

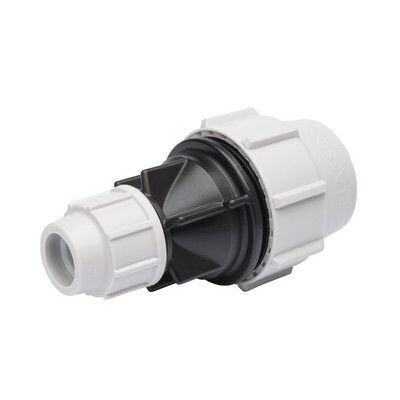

This Plasson reducing coupling joins two straight lengths of PE water pipe with different outside diameters. It is useful when extending an existing line, changing pipe size or replacing a section with a smaller or larger service pipe.

• Metric PE pipe combinations from 20 x 16 mm to 110 x 90 mm
• Pressure class: PN16
• Polypropylene body and nuts
• Polyacetal split rings
• Designed for water applications to ISO 17885

The first and second numbers identify the outside diameters of the two pipe ends. Seal material varies between product series and sizes, so confirm the selected variant and installation medium before use. Prepare and insert each pipe end in accordance with Plasson instructions.
