1 in irrigation solenoid valve

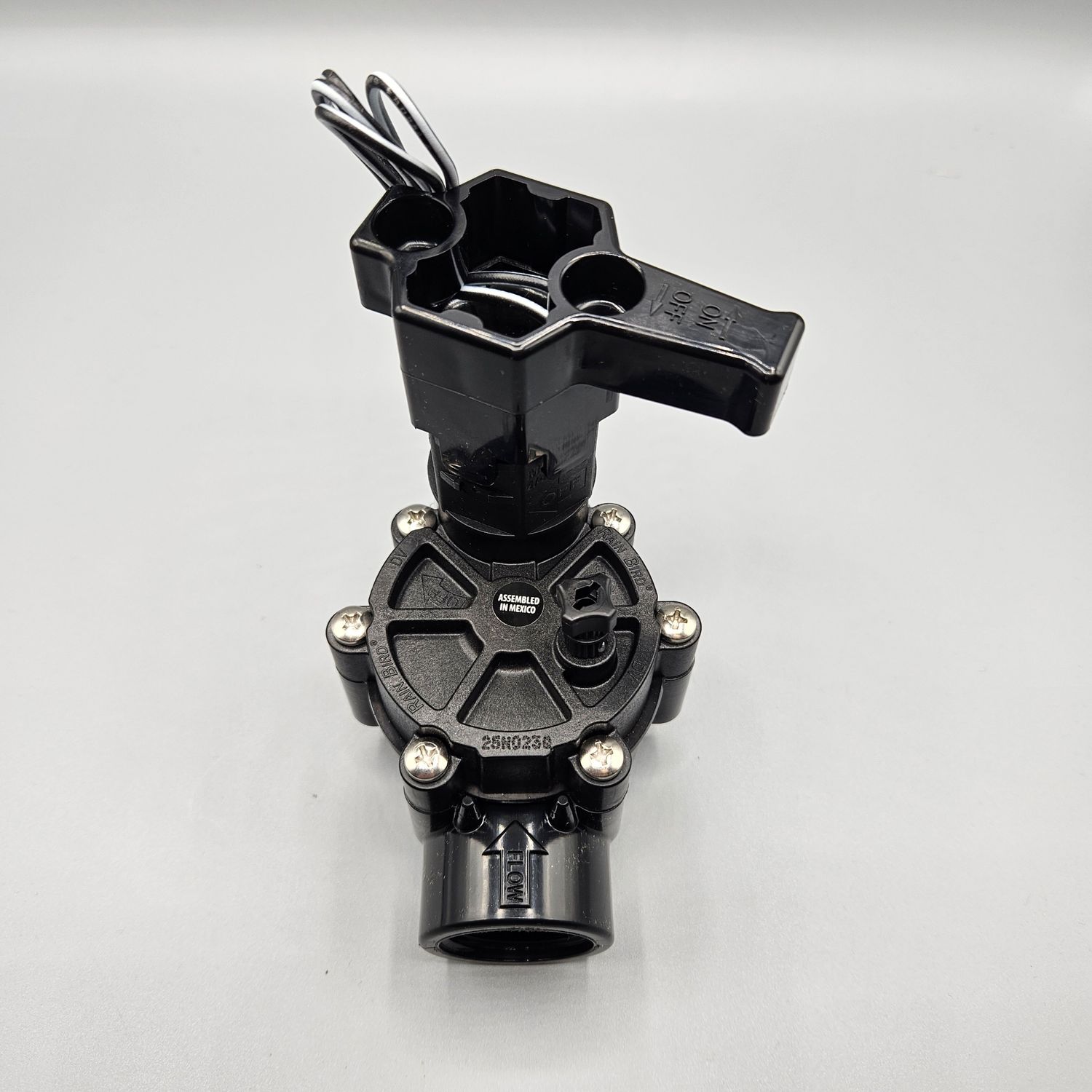

The Rain Bird 100-DV is a normally closed electric valve for residential and light-commercial irrigation zones. This listing is for the 1 in female BSP model with a 24 V AC solenoid.

Key specification

• Model: 100-DV without flow control.
• Connection: 1 in female BSP inlet and outlet.
• Supply: 24 V AC, 50/60 Hz.
• Operating pressure: 1.0 to 10.4 bar.
• Flow range: 0.05 to 9.08 m³/h.
• Balanced-pressure diaphragm with 200 micron pilot-water filtration.
• Internal bleed for spray-free manual operation and external bleed for flushing during commissioning.

Selection notes

Choose the 100-DVF where an integral flow-control handle is required. For flow below 0.68 m³/h or drip irrigation, Rain Bird requires a 200-mesh filter upstream. The standard model is not intended for most two-wire decoder systems; ESP-LXIVM use requires the appropriate IVMSOL component.

Install to the system design, observe the flow direction and use suitable thread sealing without overtightening the plastic body.
