Battery-controller irrigation valve with flow control

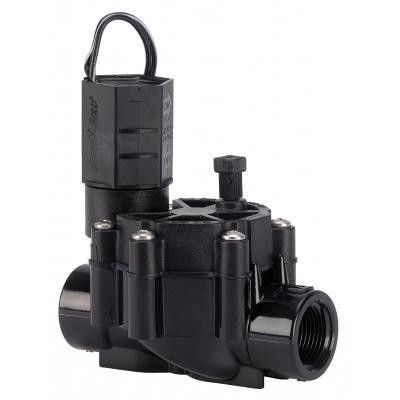

This Rain Bird 100-DVF combines a 1 in female BSP valve body, integral flow control and a 9 V DC latching solenoid. It is intended for compatible battery-operated irrigation controllers where a conventional 24 V AC supply is not available.

Key specification

• Model: 100-DVF with pressure-assisted flow control.
• Connection: 1 in female BSP inlet and outlet.
• Solenoid: 9 V DC latching.
• Operating pressure: 1.0 to 10.4 bar.
• Flow range for the 1 in DV/DVF body: 0.05 to 9.08 m³/h.
• Balanced-pressure diaphragm with 200 micron pilot-water filtration.
• Internal and external manual bleed functions.

Selection notes

A latching DC solenoid is not interchangeable with a standard 24 V AC coil. Confirm the controller output before ordering. For flow below 0.68 m³/h or drip irrigation, install a 200-mesh filter upstream. This residential valve is not recommended for conventional two-wire decoder systems.
