Compact valve for battery irrigation control

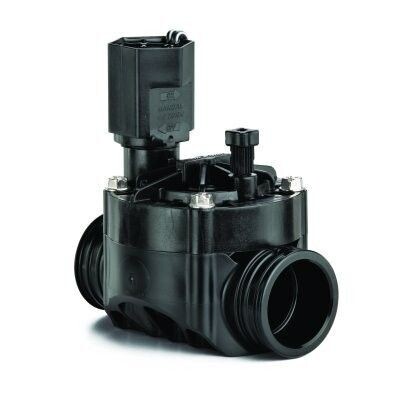

This Rain Bird 100-HV is a normally closed inline irrigation valve with 1 in female BSP connections and a 9 V DC latching solenoid. It is intended for compatible battery-operated controllers where a 24 V AC output is not available.

Key specification

• Connection: 1 in female BSP inlet and outlet.
• Solenoid: 9 V DC latching.
• Operating pressure for the HV valve family: 1.0 to 10.3 bar.
• Flow range: 0.05 to 6.82 m³/h.
• Glass-filled polypropylene body.
• Balanced-pressure Buna-N diaphragm with self-cleaning 200 micron pilot filter.
• Internal manual bleed and external flushing bleed.

Check before ordering

A latching DC solenoid is not interchangeable with a standard 24 V AC coil. Confirm controller compatibility. This HV model has no integral flow-control handle; choose an HVF version if flow adjustment is required. Use a 200-mesh upstream filter below 0.68 m³/h or for drip irrigation.
