Rain Bird 24v Solenoid Coil for JTV and DV series valves
Product Details
Brand:
Rain Bird
P/N:
RB208588-01

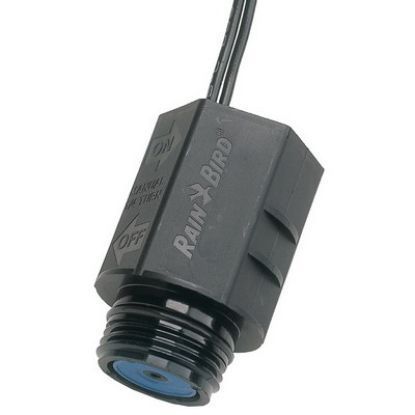

Genuine Rain Bird 24 V AC replacement solenoid
Rain Bird RPKSOLENOI, part 20858801, is a replacement AC solenoid for compatible residential and light-commercial irrigation valves. It replaces a failed coil without replacing the complete valve body.
Compatibility
- Rain Bird DV and DVF Series valves.
- Rain Bird JTV Series valves.
- Rain Bird 075-DAS, 100-DAS, 075-ASVF and 100-ASVF valves.
Electrical specification
- Supply: 24 V AC, 50/60 Hz.
- Inrush current: 0.30 A (7.2 VA).
- Holding current: 0.19 A (4.6 VA).
- Coil resistance: 38 ohms.
Important: This is an AC solenoid. It is not a 9 V DC latching coil for battery controllers. Isolate the controller supply and water pressure before replacement, then make the cable joint with connectors suitable for the valve-box environment.
