5000 Plus rotor with plastic riser

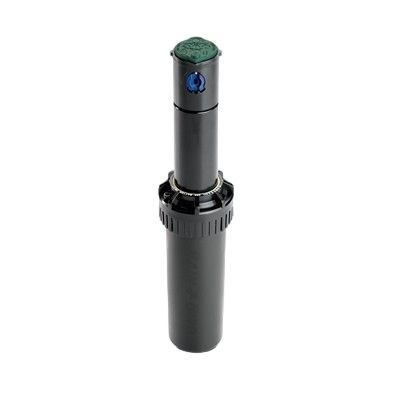

Rain Bird model 5004PLPCS is a 4 in pop-up gear-drive rotor for medium to large lawns and landscape areas. This version has a plastic riser, Plus flow shut-off and a Seal-A-Matic check valve.

Key specification

• SKU: Y45650.
• Plastic riser with 4 in (10.2 cm) pop-up.
• Adjustable part-circle and reversing full-circle arc: 40° to 360°.
• Radius: 7.6 to 15.2 m, depending on nozzle and pressure.
• Operating pressure: 1.7 to 4.5 bar.
• 3/4 in female bottom inlet.
• Radius reduction of up to 25% using the adjustment screw.
• SAM check valve holds back up to 2.1 m of elevation.

Installation and selection

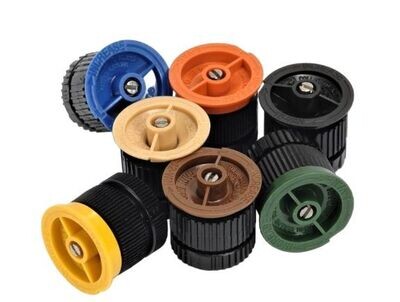

Choose a Rain Curtain nozzle to suit the required radius and available flow, flush the line before fitting it, and adjust the arc from the top with a flat-bladed screwdriver. The flow shut-off allows the selected head to be stopped during adjustment.

Connection note: Rain Bird's official specification identifies a 3/4 in NPT female inlet. Confirm thread compatibility before connecting to BSP pipework.
