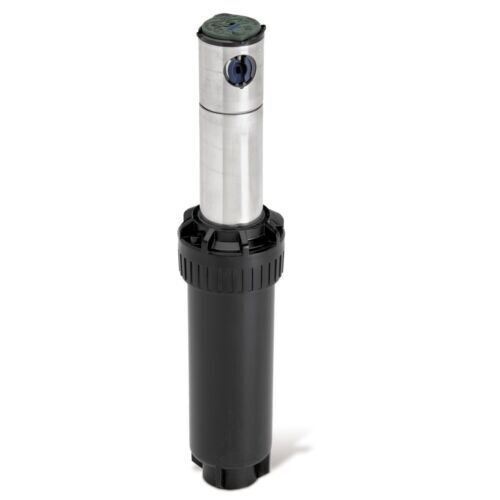

5000 Plus rotor with stainless-steel riser

Rain Bird model 5004+PCSAMRSS is a 4 in pop-up gear-drive rotor for demanding lawn and landscape irrigation. This version combines a stainless-steel riser, Plus flow shut-off, Seal-A-Matic check valve and in-stem pressure regulation.

Key specification

• SKU: Y65750SS.
• Stainless-steel riser with 4 in (10.2 cm) pop-up.
• Adjustable part-circle and reversing full-circle arc: 40° to 360°.
• Radius: 7.6 to 15.2 m, depending on nozzle and pressure.
• Operating pressure: 1.7 to 4.5 bar.
• 3/4 in female bottom inlet.
• PRS regulates pressure at the stem to 3.1 bar.
• SAM check valve holds back up to 2.1 m of elevation.

Installation and selection

Select a Rain Curtain nozzle to suit the required radius and available flow, flush the lateral line before fitting it, and adjust the arc from the top. The flow shut-off allows the head to be stopped during adjustment.

Connection note: Rain Bird's official specification identifies a 3/4 in NPT female inlet. Confirm thread compatibility before connecting to BSP pipework.
