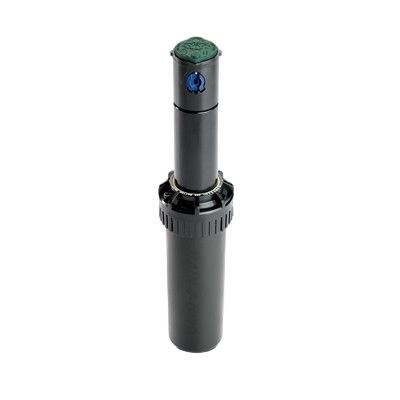

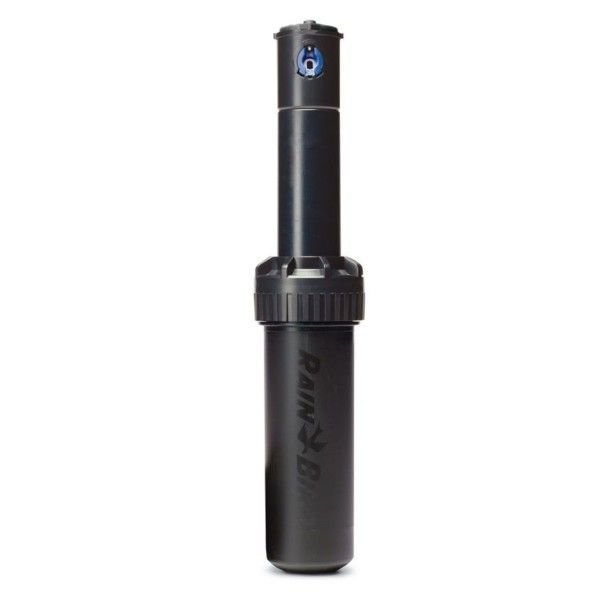

The Rain Bird 5006 Plus is a 6-inch pop-up rotor for medium and large turf areas. This plastic-riser version combines adjustable part-circle coverage with full-circle operation in one body.

Key specifications

• 40° to 360° adjustable arc
• 7.6 to 15.2 m radius, depending on nozzle and pressure
• Operating pressure: 1.7 to 4.5 bar
• Plastic riser with 6-inch pop-up height
• Seal-A-Matic check valve and flow shut-off
• ¾-inch female bottom inlet; no side inlet

Selection and installation

Use for lawns, parks, sports turf and commercial landscapes where the available flow and pressure suit the selected nozzle. Confirm the inlet connection and hydraulic performance before ordering, then install the rotor flush with finished ground level and follow Rain Bird's adjustment instructions.
