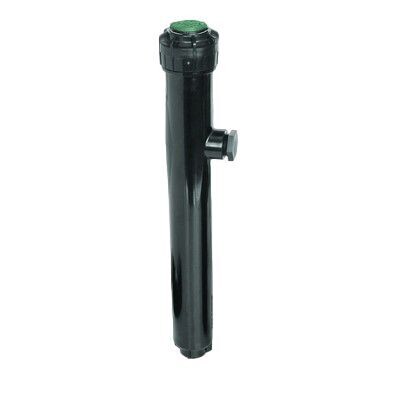

The Rain Bird 5012 Plus is a 12-inch pop-up rotor for taller planting, deeper recesses and other installations needing extra pop-up clearance. This plastic-riser model provides adjustable part-circle or full-circle turf irrigation.

Key specifications

• 40° to 360° adjustable arc
• 7.6 to 15.2 m radius, depending on nozzle and pressure
• Plastic riser with 12-inch pop-up height
• Factory pressure regulation
• Seal-A-Matic check valve
• ¾-inch NPT female bottom inlet

Selection and installation

Choose this taller model only where a 12-inch pop-up is appropriate. Confirm the available flow, pressure, inlet thread and selected nozzle against the irrigation design. The previously stated 65 ft maximum radius does not apply to this configured 5012 Plus model.
