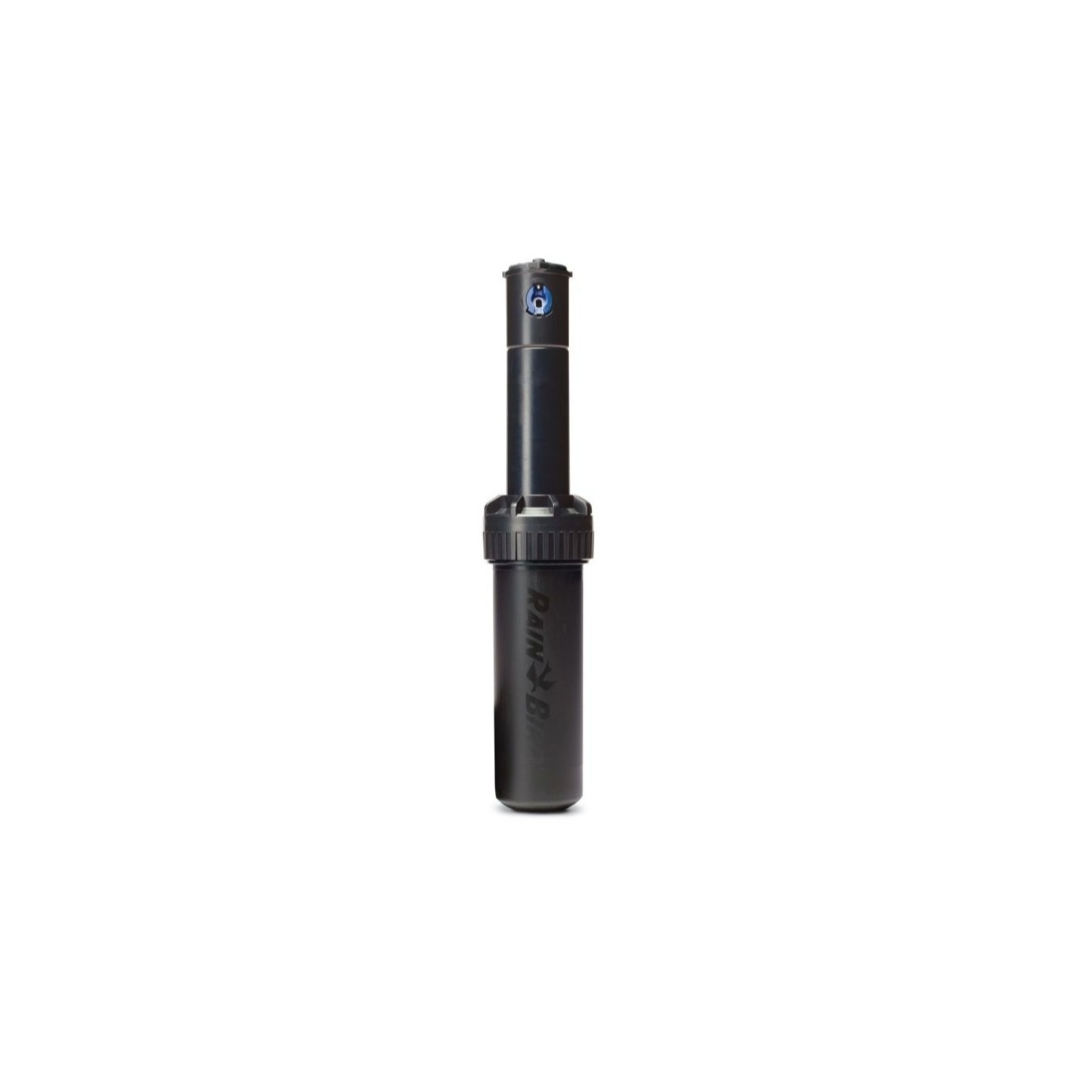

The Rain Bird Falcon 6504 plastic-riser rotor is built for large turf areas such as sports pitches, parks, schools and commercial landscapes. Choose the full-circle or part-circle variant to match the required watering pattern.

Key specifications

• 4-inch pop-up plastic riser
• Radius: 11.9 to 19.8 m
• Flow: 0.66 to 4.93 m³/h
• Operating pressure: 2.1 to 6.2 bar
• 1-inch female threaded inlet, with NPT and BSP versions in the Falcon range
• Seal-A-Matic check valve with up to 3.1 m elevation holdback
• Nozzle set included

Choose the correct arc

The Full Cycle variant provides fixed 360° coverage. The Part Cycle variant adjusts from 40° to 360°. Confirm the variant, inlet thread, nozzle, pressure and available flow before ordering.
