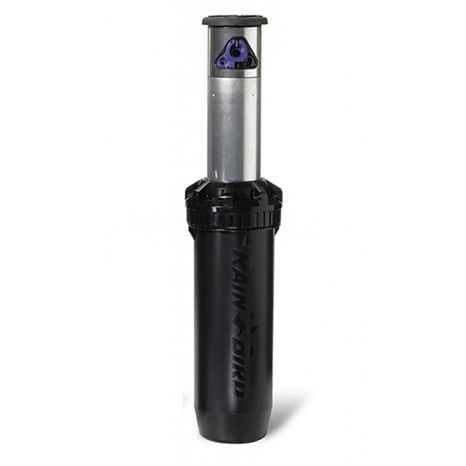

The Rain Bird Falcon 6504 stainless steel-riser rotor is designed for demanding large-turf installations such as sports pitches, parks, schools and commercial landscapes. Its stainless steel riser provides added protection in exposed or high-use locations.

Key specifications

• 4-inch pop-up stainless steel riser
• Radius: 11.9 to 19.8 m
• Flow: 0.66 to 4.93 m³/h
• Operating pressure: 2.1 to 6.2 bar
• 1-inch female threaded inlet, with NPT and BSP versions in the Falcon range
• Seal-A-Matic check valve with up to 3.1 m elevation holdback
• Nozzle set included

Choose the correct arc

The Full Cycle variant provides fixed 360° coverage. The Part Cycle variant adjusts from 40° to 360°. Confirm the variant, inlet thread, nozzle and hydraulic design before ordering.
