This is a replacement internal assembly only. It is not a complete sprinkler, and does not include the outer case.

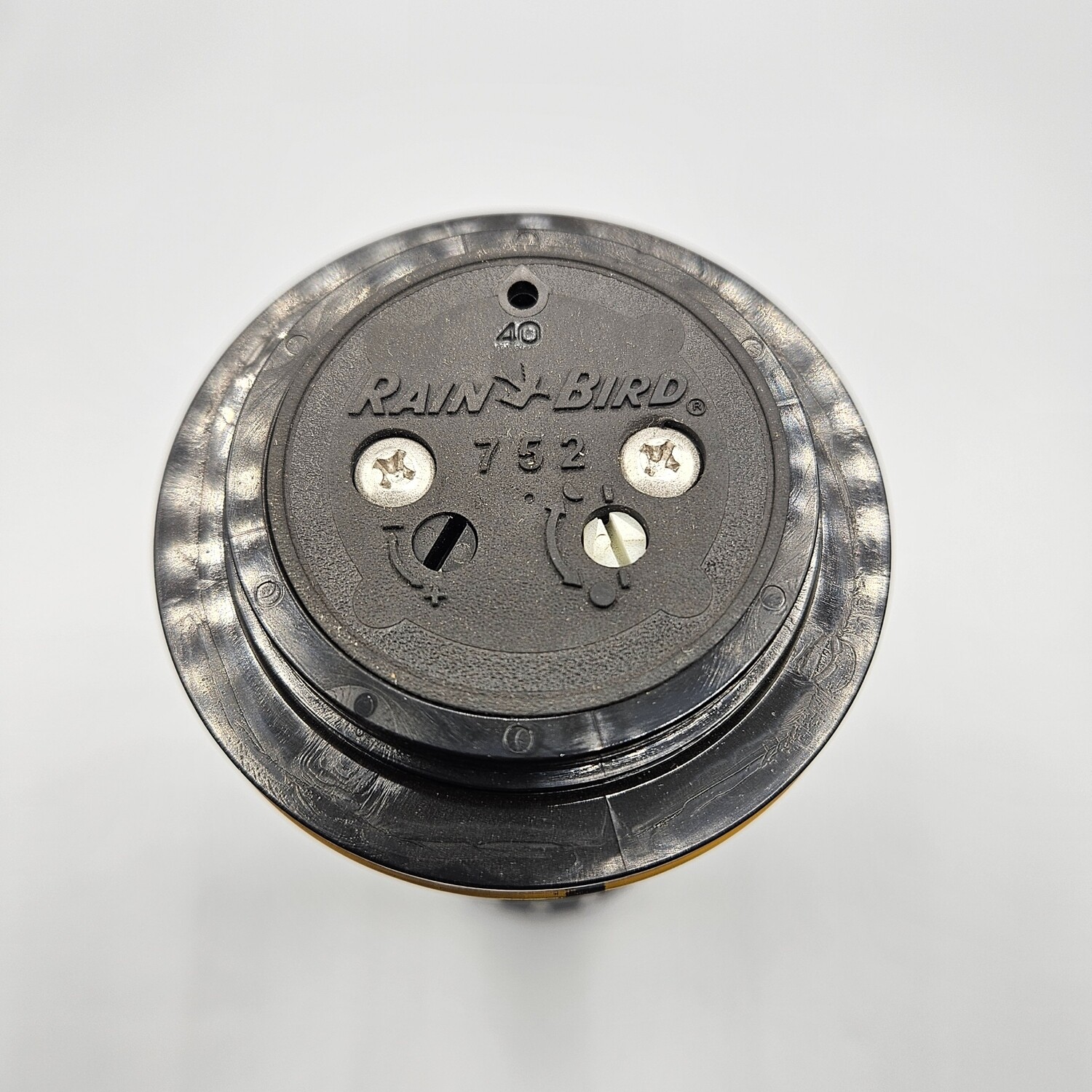

Replacement Rain Bird 752 full-circle/part-circle internal assembly, supplied with a #40 orange nozzle. Also described as the rotor insert or riser assembly, it is intended for compatible Rain Bird EAGLE 750E, 751E and 752E cases.
Key features
- 360° full-circle or 30° to 345° adjustable part-circle operation

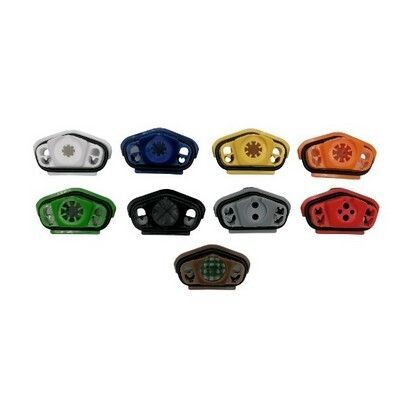

- #40 orange nozzle
- Rapid-Adjust and MemoryArc® arc setting
- Self-adjusting stator
- Top-serviceable design
Arc adjustment guide
Use a 6.5 mm flat-blade screwdriver and make adjustments with the rotor off. Do not force the full/part-circle adjustment screw.
- Turn the full/part-circle adjustment screw to the part-circle icon.
- Arc A: the left-hand edge of the arc is fixed. The arc adjustment screw moves the right-hand edge.
- Arc B: the right-hand edge is fixed. The arc adjustment screw moves the left-hand edge, and works in the reverse direction to the marks shown on the turret.
- To change between Arc A and Arc B, temporarily select full-circle, rotate the turret in its direction of rotation until the nozzle points between the edges of the required arc, then return the adjustment screw to part-circle.
- For full-circle watering, turn the adjustment screw to the full-circle setting. The stored Arc A and Arc B settings are retained for later use.
When fitting a replacement assembly, align the required fixed arc edge before refitting the snap ring. Run the rotor manually and fine-tune as required.
Before ordering
Check the existing rotor model, case, valve type, pressure-regulator setting and nozzle requirement. This is a replacement internal assembly, not a complete new rotor installation; reuse depends on the condition and compatibility of the existing case and control components.
