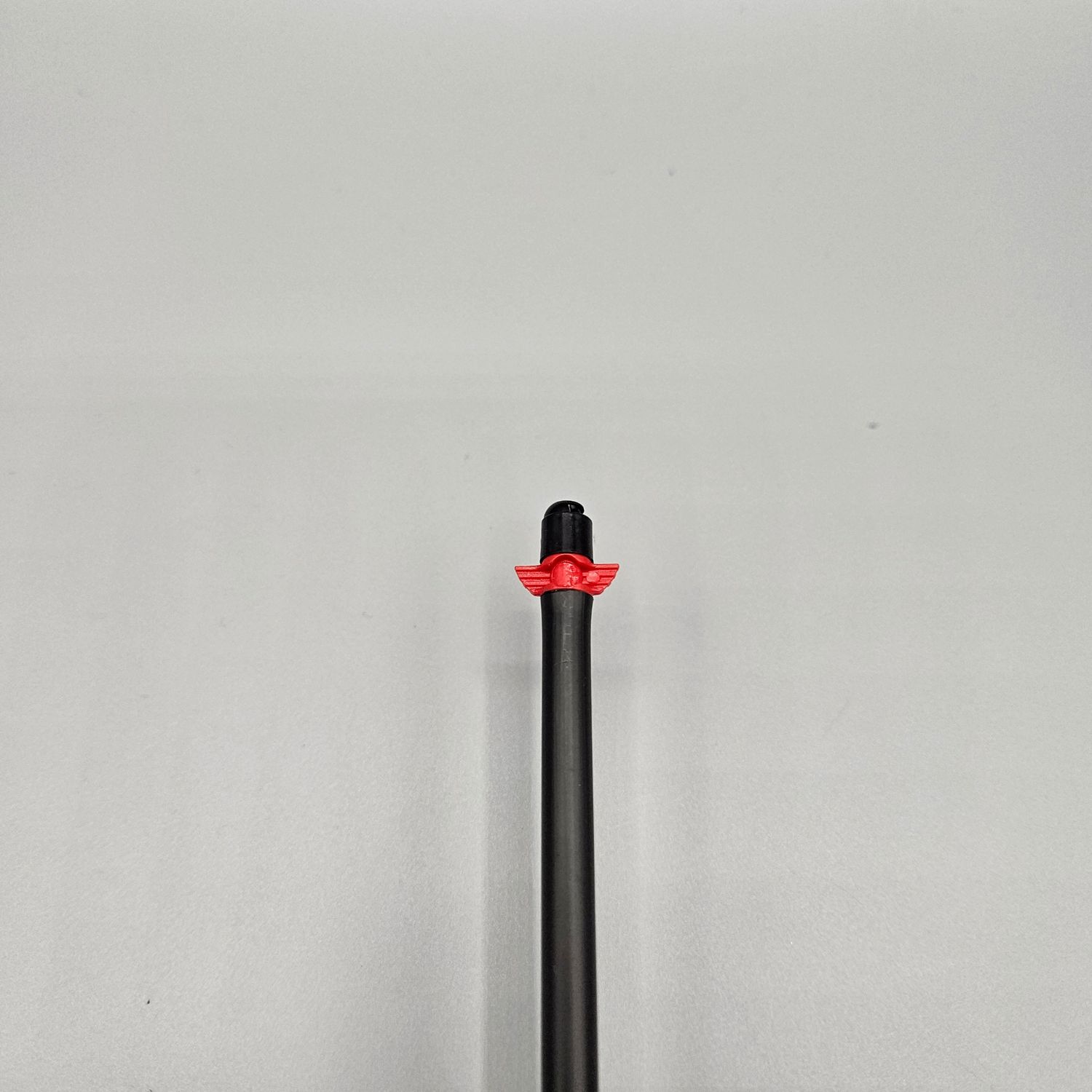

The Rain Bird Jet Spike Spray is a pre-assembled micro-irrigation sprinkler for flower beds, borders, shrubs and container planting. Its adjustable flow and choice of spray pattern allow water to be directed to the required planting area.

Available patterns

• 90°: 0 to 130 l/h, with up to 3.5 m radius.
• 180°: 0 to 130 l/h, with up to 3.3 m radius.
• 360°: 0 to 130 l/h, with up to 4.0 m radius.

Product details

• Spike length: 310 mm.
• Operating pressure: 0.5 to 2.5 bar.
• Construction: plastic spray head with polyethylene spike and connection tube.

Selection and installation

Choose 90° for corners, 180° for edges and 360° for central positions. Connect to a suitably filtered and pressure-controlled micro-irrigation supply, position the spike upright and adjust the flow to suit the planting and available pressure.

Important: Published radius is a maximum and varies with pressure, flow adjustment and site conditions. Check spacing and overlap before fixing the final positions.
