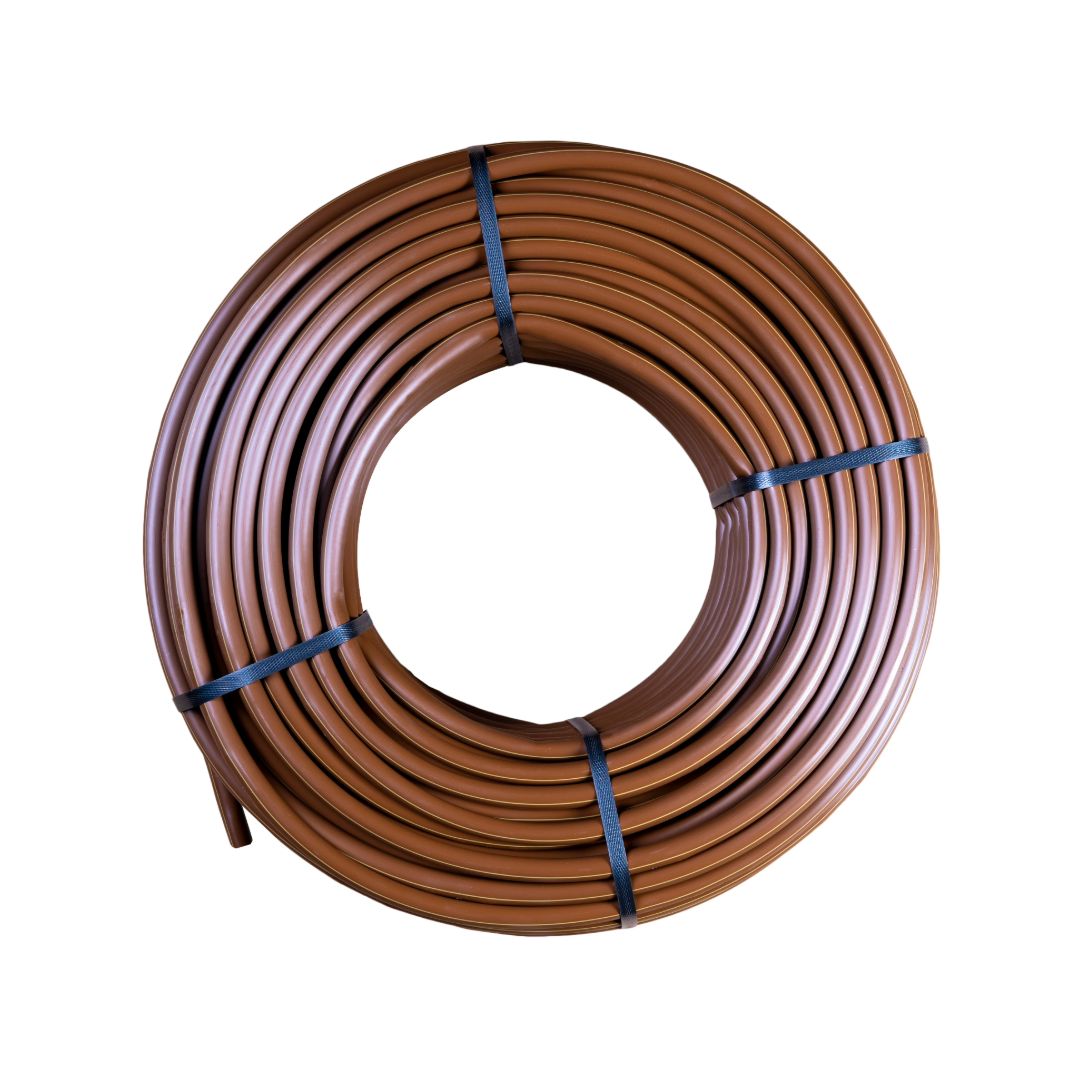

Rain Bird PCD Above-Ground Pressure-Compensating Dripline

Brown pressure-compensating dripline for above-ground landscape irrigation. Each emitter delivers a consistent nominal flow across the specified operating-pressure range.

• Coil length: 100 m
• Outside diameter: 15.90 mm
• Inside diameter: 13.61 mm
• Wall thickness: 1.14 mm
• Emitter spacing: 33 cm
• Emitter flow: 2.3 litres/hour
• Operating pressure: 0.58–4.14 bar
• Required filtration: 120 mesh

Connections and installation

Rain Bird specifies compatibility with XF insert fittings, Easy Fit compression fittings and other 17 mm insert or lock-type fittings. Filter and regulate the supply as required, flush the line before closing it, and select run lengths from the manufacturer’s design tables.

Maximum stated temperatures are 37.8°C for water and 51.7°C ambient. This is the above-ground PCD product; do not substitute it for buried dripline without checking the project specification.
