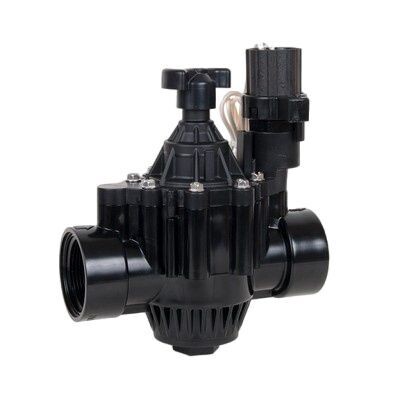

Rain Bird 200-PGA 2 in BSP Irrigation Valve

Rain Bird part B31610 is the 200-PGA commercial valve with 2 in BSP female connections. The PVC and glass-filled nylon body can be installed in globe or angle configuration.

• Connection: 2 in BSP female threaded
• Operating pressure: 1.04–10.4 bar
• Solenoid: 24 V AC
• Internal and external manual bleed
• Flow-control stem
• Maximum water temperature: 43°C

Installation

Install in the direction of flow marked on the valve, select the required globe or angle route, and leave access for adjustment and service. Check system pressure and controller compatibility before ordering.
