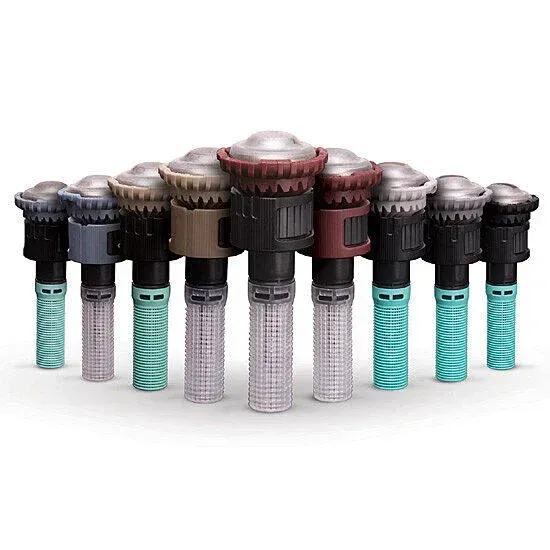

Rain Bird R-VAN Rotary Nozzles – Water-Efficient, Adjustable Coverage

Rain Bird's R-VAN Rotary Nozzles deliver uniform, low-precipitation watering with tool-free arc and radius adjustments, making them ideal for residential and commercial landscapes. Their thick, wind-resistant streams ensure precise water placement, reducing runoff and erosion.

Key Features:

• Adjustable Arc & Radius – Easily set arc from 45° to 270° (or 360° full-circle models) and radius from 8' to 24' (2.4 to 7.3 m) without tools.
• Low Precipitation Rate – Applies water at 0.6 in/hr (15.2 mm/hr), minimizing runoff and promoting efficient water use.
• Matched Precipitation – Ensures even watering across various arc and radius settings.
• Pull-Up to Flush – Feature clears debris for easy maintenance.
• Color-Coded & Laser-Marked – Simplifies identification and selection.
• High-Pressure Performance – Operates efficiently at pressures from 30 to 55 psi (2.1 to 3.8 bar) without misting or fogging.
• Compatibility – Fits most Rain Bird spray bodies, risers, and adapters.

Model Options:

• R-VAN14: 8'–14' (2.4–4.6 m) radius, 45°–270° arc
• R-VAN14-360: 8'–14' (2.4–4.6 m) radius, 360° arc
• R-VAN18: 13'–18' (4.0–5.5 m) radius, 45°–270° arc
• R-VAN18-360: 13'–18' (4.0–5.5 m) radius, 360° arc
• R-VAN24: 17'–24' (5.2–7.3 m) radius, 45°–270° arc
• R-VAN24-360: 17'–24' (5.2–7.3 m) radius, 360° arc
• R-VAN-LCS: 5' x 15' (1.5 x 4.6 m) Left Corner Strip
• R-VAN-RCS: 5' x 15' (1.5 x 4.6 m) Right Corner Strip
• R-VAN-SST: 5' x 30' (1.5 x 9.1 m) Side Strip

Operating Specifications:

• Pressure Range: 30–55 psi (2.1–3.8 bar)
• Recommended Pressure: 45 psi (3.1 bar)
• Spacing: 8'–24' (2.4–7.3 m)
• Adjustments: Arc and radius should be set while water is running

For optimal performance, pair R-VAN nozzles with Rain Bird 1800® PRS-45 spray bodies to maintain consistent pressure and maximize water efficiency.
