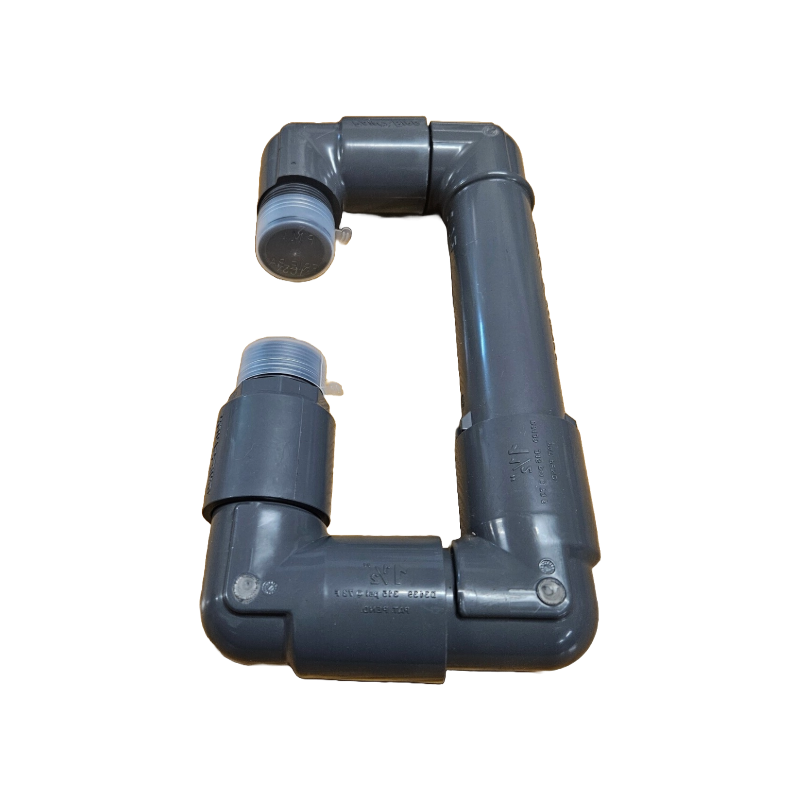

Rain Bird 1½ in BSP to ACME Triple Swing Joint

A pre-assembled swing joint for connecting and positioning a compatible golf rotor. This listed configuration has an additional inlet elbow for greater flexibility at the lateral connection.

• Lay-arm diameter: 1½ in
• Lay-arm length: 12 in / 30.5 cm
• Inlet: 1½ in BSP
• Outlet: 1½ in modified ACME
• Additional inlet elbow
• Rigid PVC Type I construction
• Double O-ring seals at rotating joints
• Pressure rating: 21.7 bar at 22.8°C

Selection and installation

Match the complete Rain Bird code and both thread types to the service tee and rotor. Use a suitable seal on the BSP connection; the ACME outlet seals with its O-ring. Hand-tighten and fully depressurise the system before adjustment or removal.
