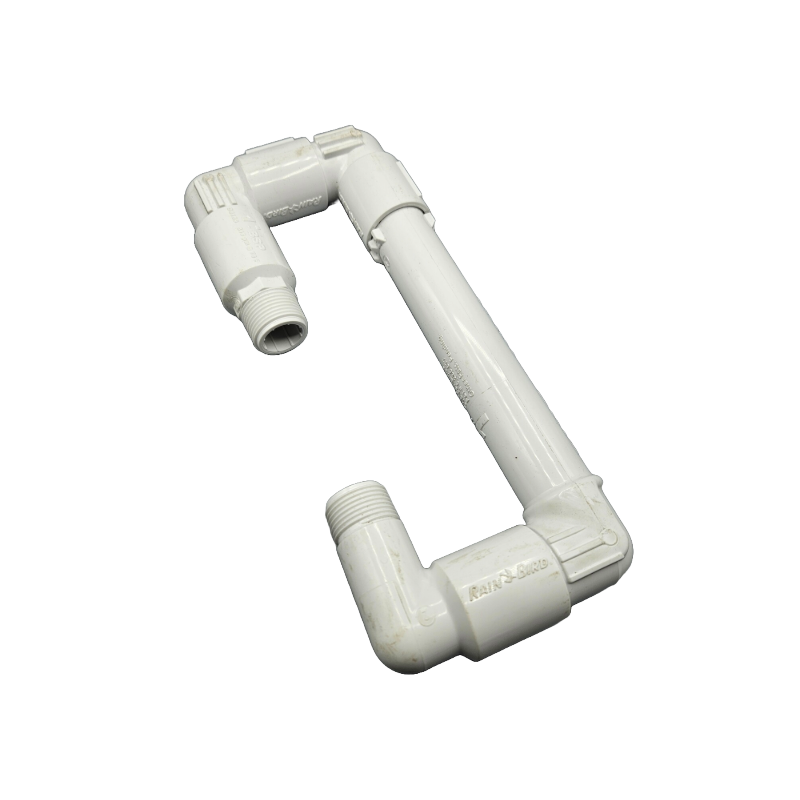

Rain Bird 1 in BSP to BSP Triple Swing Joint

A pre-assembled swing joint for connecting and positioning a compatible golf or large-turf rotor. This listed configuration has an additional inlet elbow for flexibility at the lateral connection.

• Lay-arm diameter: 1 in
• Lay-arm length: 12 in / 30.5 cm
• Inlet: 1 in BSP
• Outlet: 1 in BSP
• Additional inlet elbow
• Rigid PVC Type I construction
• Double O-ring seals at rotating joints
• Pressure rating: 21.7 bar at 22.8°C

Selection and installation

Match the complete Rain Bird code and both BSP connections to the adjoining equipment. Use a suitable thread seal and hand-tighten components to avoid damage. Fully depressurise the system before adjustment or rotor removal.
