Compact dripline for pots and small planted areas

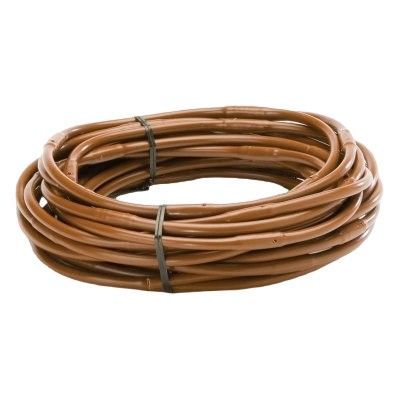

This brown Rain Bird ¼ in landscape dripline has a 6 mm outside diameter for discreet on-surface watering of containers, planter boxes, vegetable beds, shrubs and loops around trees. Built-in emitters provide point-source watering along the tube.

Specification

• Outside diameter: 6 mm
• Inside diameter: 4 mm
• Emitter spacing: 15 cm
• Emitter flow: 3.0 l/h at 2.0 bar
• Operating pressure: 0.7–2.7 bar (10–40 psi)
• Required filtration: 200 mesh (75 micron)
• Listed coil length: 30 m

Use compatible Rain Bird ¼ in barbed fittings. Calculate total flow from the number of emitters and provide suitable filtration, pressure regulation and an accessible flushing point.
