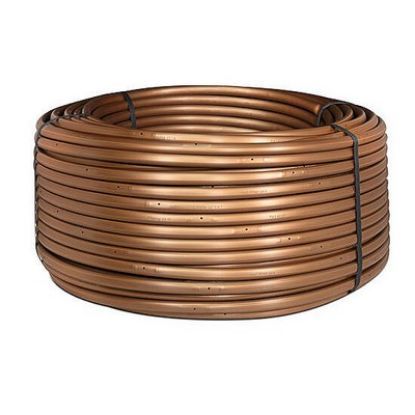

Root-resistant dripline for below-ground irrigation

Rain Bird XFS subsurface dripline with Copper Shield and pressure compensation. 100 m coil, 33 cm spacing and selected 1.6 or 2.3 l/h emitters. Copper Shield technology protects each emitter against root intrusion without requiring chemical-release treatment.

Listed specification

• Outside diameter: 16 mm
• Emitter spacing: 33 cm
• Emitter flow options: 1.6 or 2.3 L/h
• Coil length: 100 m
• Operating pressure: 8.5–60 psi (0.58–4.14 bar)
• Construction: copper-over-black dual-layer tubing

Use compatible Rain Bird XF insert fittings. Design the lateral spacing and burial depth for the soil, planting and site conditions, and include suitable filtration, pressure regulation and flushing provisions.
