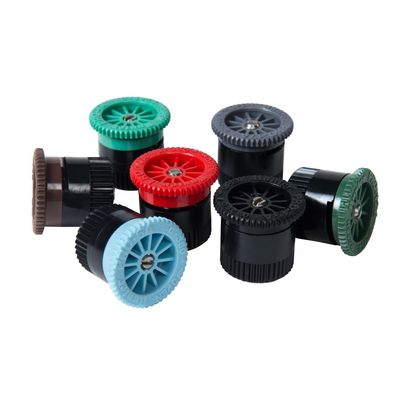

Rain Bird SQ pressure-compensating square nozzles

The listed X54900, X54901 and X54902 variants are Rain Bird SQ Series nozzles for precise, low-volume watering of small and narrow planted areas. Their square pattern provides edge-to-edge coverage with two selectable throw distances.

Choose the correct variant

• X54902: quarter-square pattern
• X54901: half-square pattern
• X54900: full-square pattern

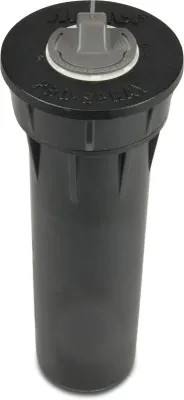

• X54905: SQ adaptor with 30 cm PolyFlex riser assembly

Nozzle specification

• Throw: 0.8 or 1.2 m
• Pressure: 1.4–3.5 bar (20–50 psi)
• Required filtration: 40 mesh
• Compatibility: Rain Bird 1800 Series, Xeri-Pop, UNI-Spray, PolyFlex riser adaptor and suitable SCH 80 risers

This product combines nozzle and riser-adaptor variants. Select the required pattern or adaptor deliberately; an adaptor does not include a nozzle unless stated in the variant.
