Pressure-compensating point-source emitters

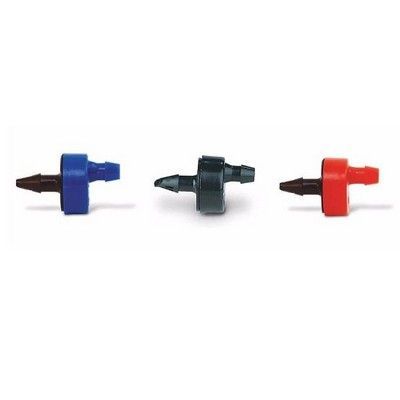

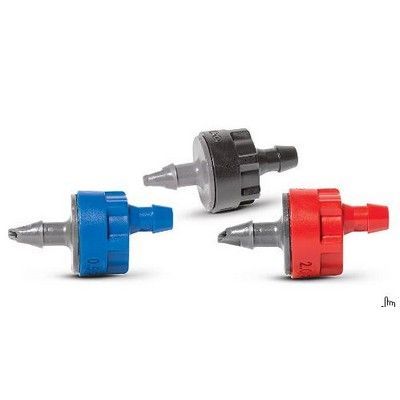

Rain Bird Xeri-Bug XBCV emitters deliver a controlled flow to individual plants while the integral check valve holds back up to 3 m of water. This helps limit low-point drainage on slopes, raised planters and vertical planting.

Listed flow options

• Blue: 2 l/h nominal (official rating 1.9 l/h)
• Black: 4 l/h nominal (official rating 3.8 l/h)
• Red: 8 l/h nominal (official rating 7.6 l/h)

Operating specification

• Pressure: 1.0–3.5 bar (15–50 psi)
• Filtration: 150 mesh (75 micron)
• Inlet: self-piercing barb
• Outlet: barb for ¼ in Rain Bird XQ distribution tubing
• Design: pressure-compensating and self-flushing

Select the colour by the required plant flow. Provide the specified filtration and keep operating pressure within range.
