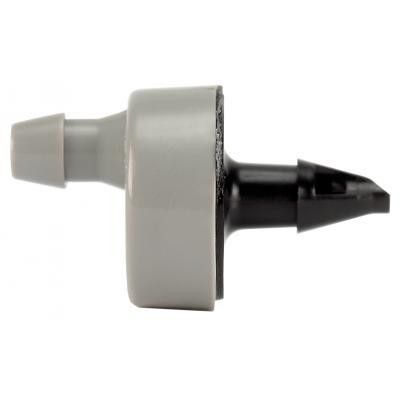

The Rain Bird SPB025 self-piercing barb connector provides a take-off from larger drip tubing to 1/4-inch distribution tubing. Its grey outlet identifies an unrestricted-flow connector rather than a pressure-compensating emitter.

Product details

• Rain Bird code: X42030.
• Model: SPB025.
• Outlet: 1/4-inch barb for distribution tubing.
• Mainline compatibility: suitable Rain Bird 1/2-inch or 3/4-inch drip tubing.
• Operating pressure: 0 to 3.5 bar.
• Flow: unrestricted.

Installation

Use the Rain Bird Xeriman XM-Tool to pierce the main tubing and insert the connector in one operation, then attach the compatible 1/4-inch distribution tube.

Important: This fitting does not regulate flow. Add the correct emitter or outlet device for the planting requirement and confirm tubing compatibility before installation.
