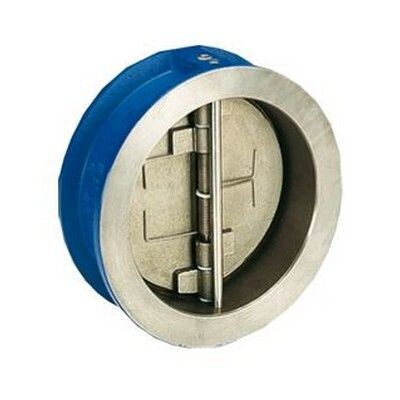

The Socla 895 is a compact, spring-assisted dual-plate non-return valve for preventing reverse flow in pumping, water-distribution and general industrial systems. It mounts between flanges rather than using threaded ends.

Construction and duty

• PN10/16 wafer connection
• Maximum water working pressure: 16 bar
• Operating temperature: -10°C to 100°C
• Epoxy-coated EN-GJL-250 cast-iron body for DN50 to DN100 listed sizes
• AISI 304 stainless-steel plates, AISI 316 stainless-steel spring and EPDM seal
• Suitable for horizontal flow and vertical ascending or descending flow, subject to the installation instructions

Available sizes

• DN50 / 2 in — 54 mm face-to-face
• DN65 / 2½ in — 54 mm face-to-face
• DN80 / 3 in — 57 mm face-to-face
• DN100 / 4 in — 64 mm face-to-face

Confirm flange compatibility, medium and operating conditions before ordering. Flush new or serviced pipework before commissioning and pressurise progressively. Where water hammer is possible, provide suitable system protection.

This is a non-stock item; lead time must be confirmed.
