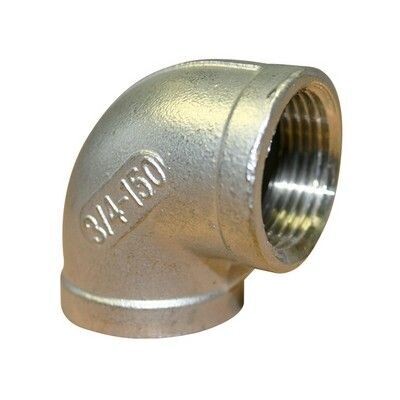

This 90° elbow changes direction in compatible threaded pipework. Both ports are female BSP.

Specifications

• Material: 316 stainless steel
• Connection: female x female BSP
• Fitting class: Class 150
• Available sizes: ¼ in, ½ in, ¾ in, 1 in, 1½ in and 2 in

Select the same nominal size at both ends. Class 150 is a fitting class rather than a universal 150 psi working-pressure rating; confirm the pressure-temperature duty, fluid compatibility and sealing method for the installation.
